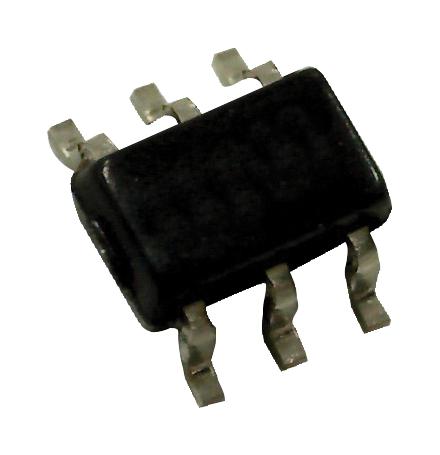

DIODES INC. - QSBT40-7-F - ESD Protection Device, SOT-363, 6 Pins, 30 V, 200 mW, QSBT4
- Clamping Voltage Vc Max: -
- Diode Case Style: SOT-363
- No. of Pins: 6Pins
- Operating Voltage: 30V
- Power Dissipation Pd: 200mW
- Product Range: QSBT4 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Current Ifsm: 600mA
- Diode Configuration: Bridge
- Diode Type: Schottky
- Forward Current If(AV): 100mA
- Forward Surge Current Ifsm Max: 600mA
- Forward Voltage VF Max: 1V
- Junction Temperature Tj Max: 125°C
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Repetitive Reverse Voltage Vrrm Max: 30V
- Reverse Recovery Time trr Max: 5ns
- Reverse Recovery Time trr Typ: 5ns
- Termination Type: Surface Mount Device
