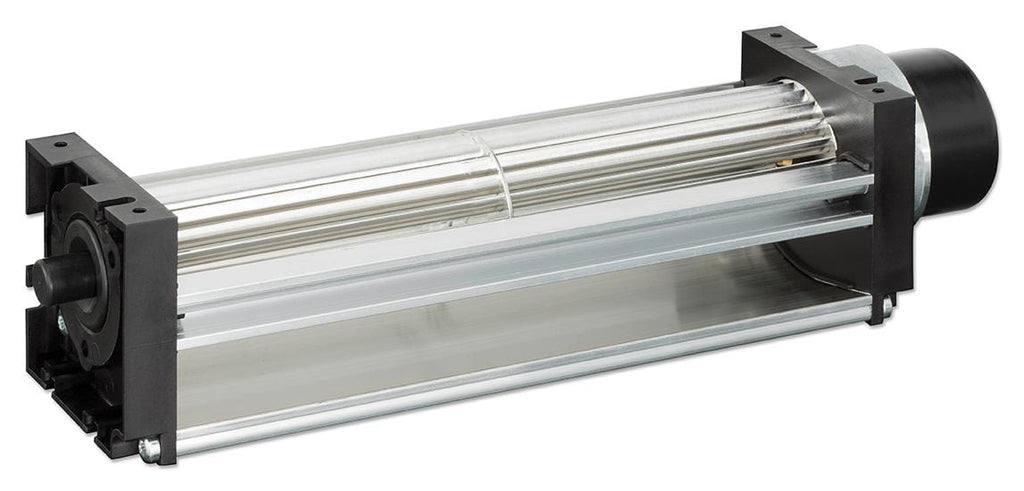

EBM-PAPST - QG030-198/12. - Fan Blower, QG030 Series, Crossflow, 12 VDC, DC, 47.5 mm, 50 mm, 59 CFM
- Blower Type: Crossflow
- Supply Voltage: 12V
- Current Type: DC
- Fan Frame Size: 47.5mm
- External Depth: 50mm
- Flow Rate - Metric: 100.24m³/h
- Flow Rate - Imperial: 59cu.ft/min
- Noise Rating: 51dBA
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Power Rating: 8W
- Product Range: QG030 Series
- IP Rating: -
- SVHC: No SVHC (15-Jan-2019)
- External Height: 47.5mm
- External Width: 50mm
- Frame Dimensions: 47.5mm x 50mm x 258mm
- Power Consumption: 8W
- Type: Crossflow, 260mm
