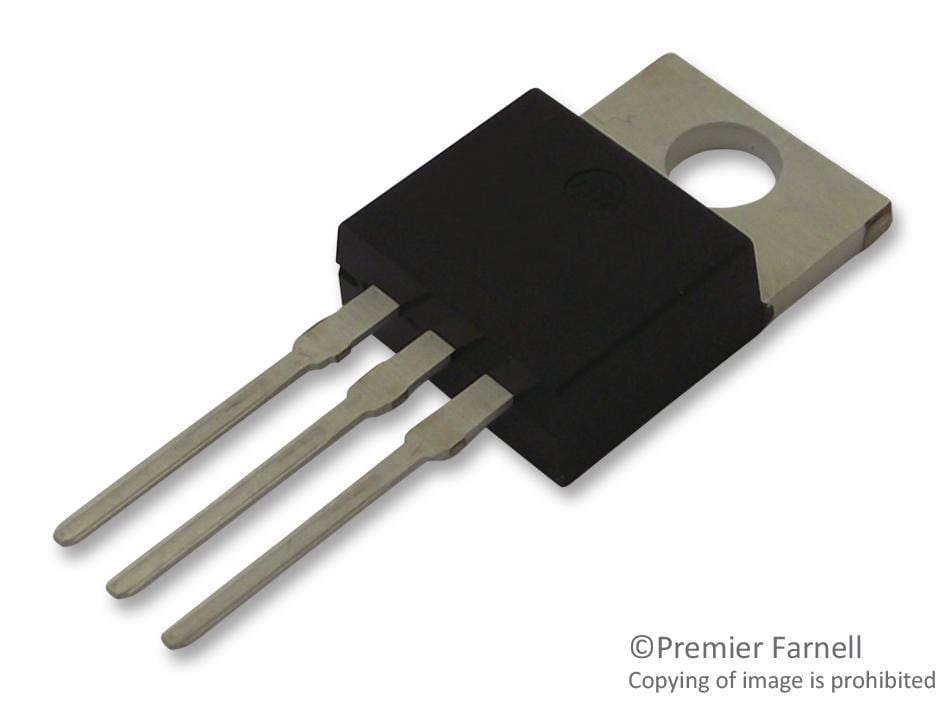

LITTELFUSE - Q4004L3TP - Triac, 400 V, 4 A, TO-220AB, 1.3 V, 46 A, 20 mA
- Peak Repetitive Off-State Voltage, Vdrm: 400V
- On State RMS Current IT(rms): 4A
- Triac Case Style: TO-220AB
- Gate Trigger Current Max (QI), Igt: 10mA
- Gate Trigger Voltage Max Vgt: 1.3V
- Peak Gate Power: 300mW
- Peak Non Rep Surge Current Itsm 50Hz: 46A
- Holding Current Max Ih: 20mA
- No. of Pins: 3Pins
- Operating Temperature Max: 125°C
- Product Range: Qxx04xx Series
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (12-Jan-2017)
