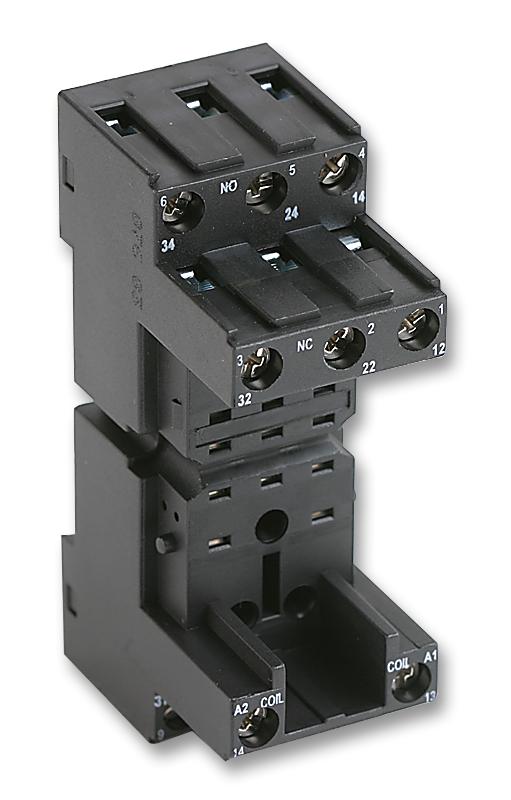

TE CONNECTIVITY - 9-1415071-1 - Relay Socket, DIN Rail, Screw, 10 A, 240 V, PT
- Socket Mounting: DIN Rail
- Socket Terminals: Screw
- No. of Pins: -
- Current Rating: 10A
- Voltage Rating: 240V
- Product Range: PT Series
- SVHC: No SVHC (15-Jan-2018)
- Accessory Type: Socket
- Approval Bodies: VDE
- Approval Category: UL Recognised
- Dielectric Voltage Coil to Contact: 2500VAC
- Dielectric Voltage Contact to Contact: 2500VAC
- External Depth: 58mm
- External Length / Height: 73.5mm
- External Width: 27mm
- For Use With: PT Series Miniature General Purpose Relay
- IP / NEMA Rating: IP20
- No. of Positions: 3Ways
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 240V
- Weight: 48g
- Wire Area Size Max: 4mm²
- Wire Area Size Min: 2.5mm²
