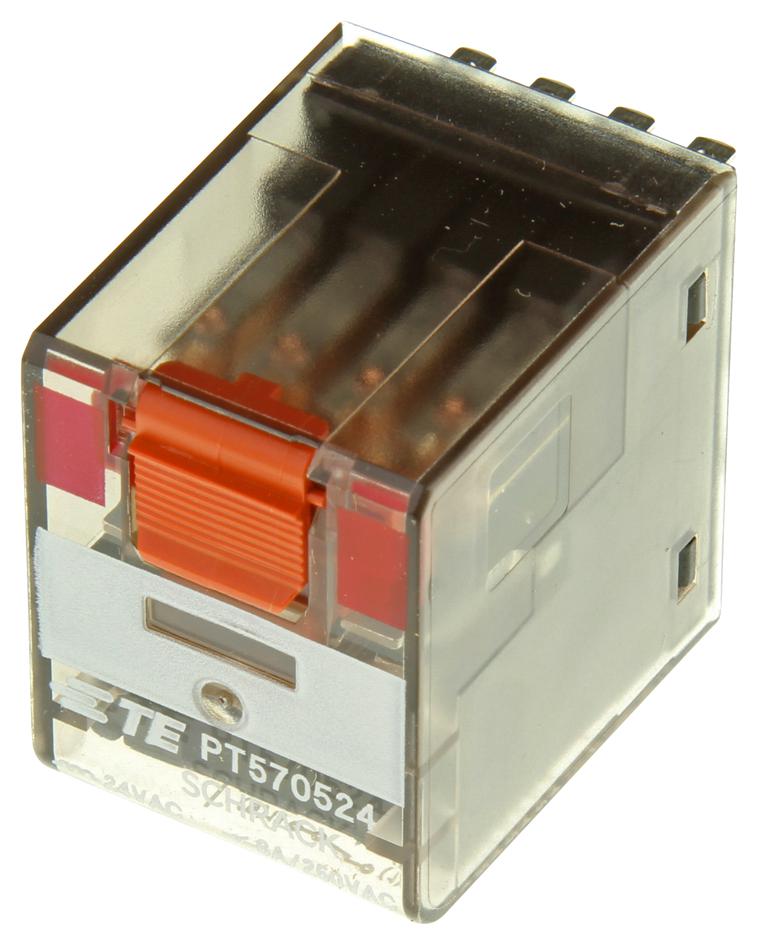

SCHRACK - TE CONNECTIVITY - 8-1419111-7 - General Purpose Relay, PT Series, Power, Non Latching, 4PDT, 24 VAC, 6 A
- Contact Configuration: 4PDT
 - Coil Voltage: 24VAC
 - Contact Current: 6A
 - Product Range: PT Series
 - Relay Mounting: Socket
 - Coil Type: Non Latching
 - Contact Voltage VAC: 240VAC
 - Relay Terminals: Quick Connect
 - Contact Voltage VDC: -
 - Contact Material: Silver
 - Coil Resistance: 192ohm
 - SVHC: No SVHC (15-Jan-2018)
 - AC Coil Power: 1VA
 - Approval Bodies: LLOYDS, VDE
 - Approval Category: UL Recognised
 - Approvals & Standards: UL, VDE
 - Coil Voltage VAC Nom: 24V
 - Contact Current AC Max: 6A
 - Contact Current DC Max: 12A
 - Contact Current Max: 6A
 - Contact Voltage AC Max: 230V
 - Contact Voltage AC Nom: 250V
 - Contact Voltage DC Max: 230V
 - Contact Voltage DC Nom: 110V
 - DC Coil Power: 750mW
 - Dielectric Voltage Coil to Contact: 2500VAC
 - Dielectric Voltage Contact to Contact: 1200VAC
 - External Depth: 29mm
 - External Height: 28mm
 - External Length / Height: 28mm
 - External Width: 22.5mm
 - Must Actuate Voltage: 19.2V
 - Must Release Voltage: 7.2V
 - Nom Operating Power: 1VA
 - Operating Temperature Max: 70°C
 - Operating Time: 15ms
