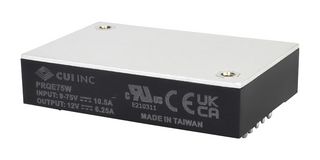

PRQE75W-E12-S15-D - Isolated Through Hole DC/DC Converter, ITE & Railway, 75 W, 1 Output, 15 V, 5 A - CUI

CUISKU: PRQE75W-E12-S15-D Order code: 3976739

Price:
Sale price€261,17

Tax included Shipping calculated at checkout

Stock:
Only 3 units left

Documenten en downloads

Description

  • DC / DC Converter Output Type: Fixed, Adjustable
  • DC / DC Converter Type: Quarter Brick
  • Depth: 57.9mm
  • Height: 12.7mm
  • Input Ratio: -
  • Input Voltage DC Max: 75V
  • Input Voltage DC Min: 9V
  • Input Voltage DC Nom: 36V
  • Isolation Voltage: 3kV
  • No. of Outputs: 1 Output
  • Output Current - Output 1: 5A
  • Output Current - Output 2: -
  • Output Power Max: 75W
  • Output Regulation: Regulated
  • Output Voltage - Output 1: 15V
  • Output Voltage - Output 2: -
  • Power Supply Applications: ITE & Railway
  • Product Range: PRQE75W-D Series
  • Width: 36.8mm
