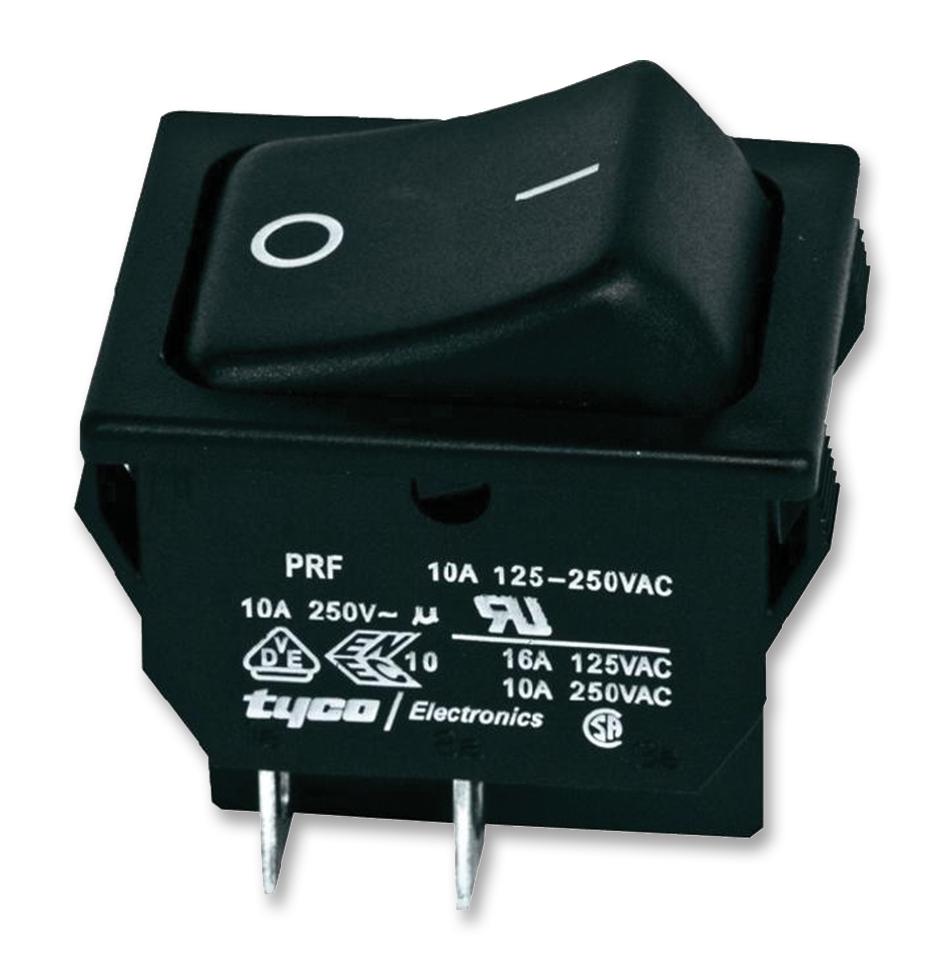

TE CONNECTIVITY - PRFDA1-16F-BB0BW - Rocker Switch, Off-On, DPST, Non Illuminated, Panel Mount, Black, PRF
- Illumination: Non Illuminated
- Contact Configuration: DPST
- Switch Operation: Off-On
- Actuator / Cap Colour: Black
- Switch Mounting: Panel
- Contact Current Max: 16A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Product Range: PRF Series
- Approval Bodies: CSA, ENEC, UL, VDE
- Bezel Depth: 25mm
- Bezel Width: 31.5mm
- Colour: Black
- Contact Current @ Contact Voltage AC Min: 10A
- Contact Current AC Max: 16A
- Contact Resistance: 50mohm
- Contact Voltage AC Max: 250V
- External Length / Height: 29.5mm
- Inrush Current: 80A
- Insulation Resistance: 100Mohm
- Material: Nylon 6/6, UL 94V-2
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 100000
- Panel Cutout Depth: 22.2mm
- Panel Cutout Size: 22.2 x 30.2 mm
- Panel Cutout Width: 30.2mm
- Panel Cutout length: 22.2mm
- Terminal Material: Silver plated copper alloy
