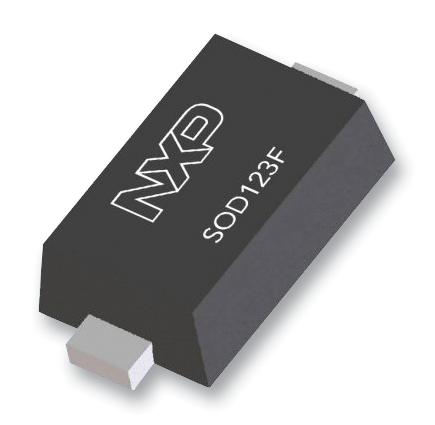

NEXPERIA - PMEG6010CEH,115 - Schottky Rectifier, Barrier, 60 V, 1 A, Single, SOD-123F, 2 Pins, 660 mV
- Repetitive Reverse Voltage Vrrm Max: 60V
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Diode Case Style: SOD-123F
- No. of Pins: 2Pins
- Forward Voltage VF Max: 660mV
- Forward Surge Current Ifsm Max: 9A
- Operating Temperature Max: 150°C
- Product Range: PMEG6 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Current Ifsm: 9A
- Diode Type: Schottky
- Forward Voltage: 660mV
- Junction Temperature Tj Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Semiconductor Technology: Si
- Termination Type: Surface Mount Device
