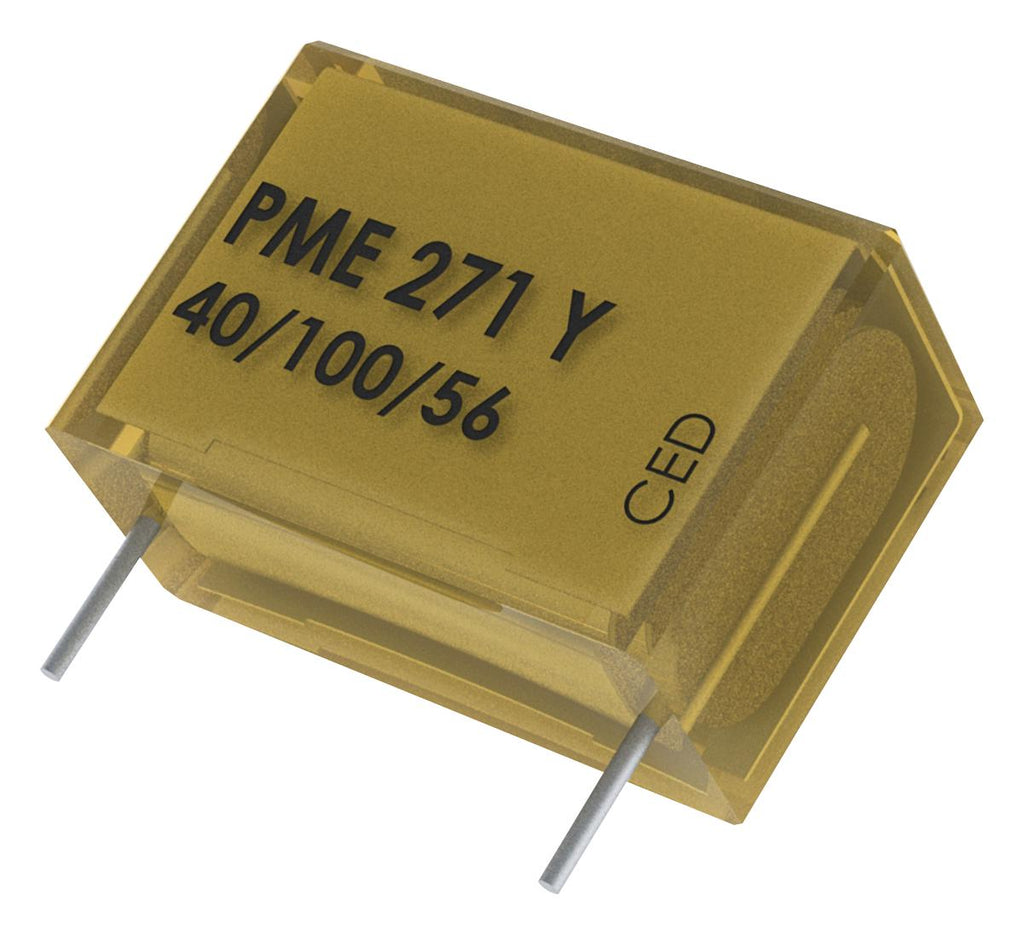

KEMET - PME271Y447MR30 - Safety Capacitor, Metallized Paper, Radial Box - 2 Pin, 4700 pF, ± 20%, Y2, Through Hole
- Capacitance: 4700pF
- Suppression Class: Y2
- Product Range: PME271Y Series
- Voltage Rating X: -
- Voltage Rating Y: 250V
- Capacitor Dielectric Type: Paper (MP)
- Capacitance Tolerance: ± 20%
- dv/dt Rating: 2000V/µs
- Capacitor Case Style: Radial
- Capacitor Terminals: Radial Leaded
- Operating Temperature Min: -40°C
- Operating Temperature Max: 100°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, DEMKO, EN, FI, IMQ, NEMKO, OVE, SEMKO, SEV, UL, VDE
- Capacitor Application: Safety / Suppression
- Climatic Category: 40/100/56
- Dissipation Factor: 1.3%
- External Depth: 5.1mm
- External Length / Height: 10.5mm
- External Width: 13.5mm
- Height: 10.5mm
- Lead Diameter: 0.6mm
- Lead Length: 30mm
- Lead Spacing: 10.2mm
- Operating Temperature Range: -40°C to +100°C
- Voltage Rating VAC: 250V
