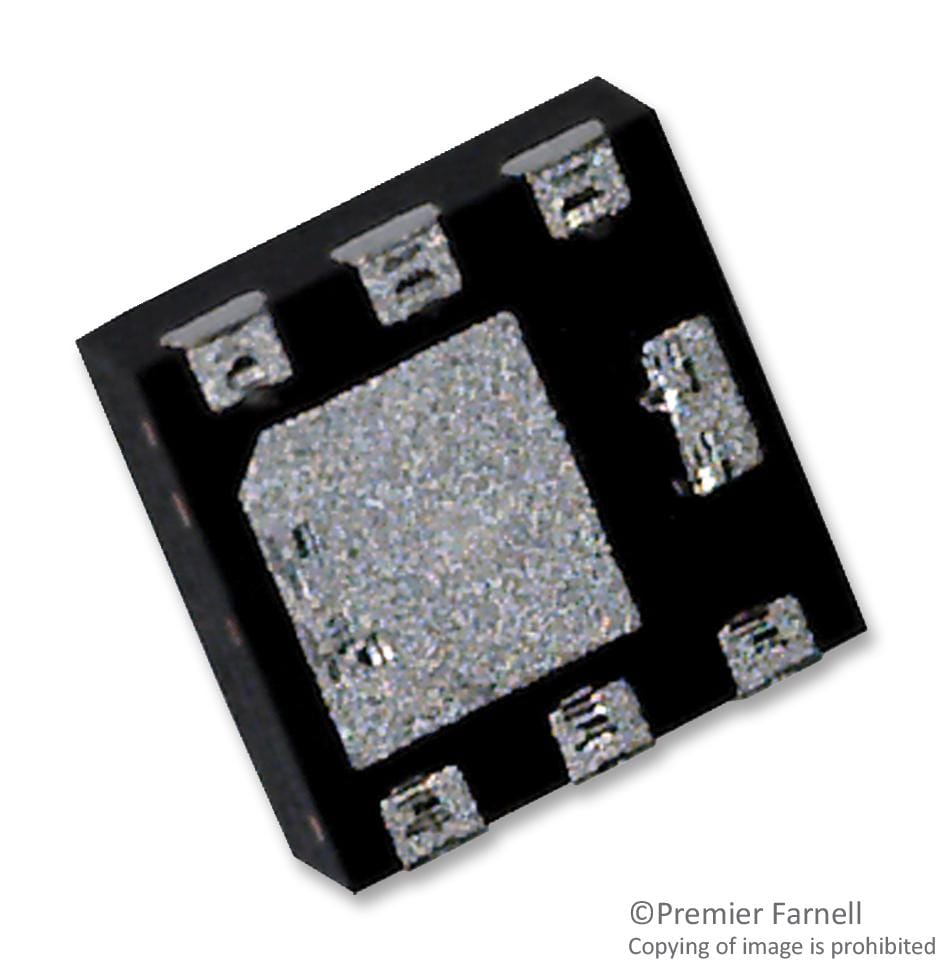

NEXPERIA - PMDPB70XPE,115 - Dual MOSFET, P Channel, 20 V, 4.2 A, 0.066 ohm, SOT-1118, Surface Mount
- Transistor Polarity: Dual P Channel
- Continuous Drain Current Id: -4.2A
- Drain Source Voltage Vds: -20V
- On Resistance Rds(on): 0.066ohm
- Rds(on) Test Voltage Vgs: -4.5V
- Threshold Voltage Vgs: -1V
- Power Dissipation Pd: 1.21W
- Transistor Case Style: SOT-1118
- No. of Pins: 8Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Operating Temperature Min: -55°C
