NEXPERIA - PIMC31,115 - Bipolar Pre-Biased / Digital Transistor, BRT, NPN and PNP Complement, 50 V, 500 mA, 1 kohm, 10 kohm
- Digital Transistor Polarity: NPN and PNP Complement
- Collector Emitter Voltage V(br)ceo: 50V
- Continuous Collector Current Ic: 500mA
- Base Input Resistor R1: 1kohm
- Base-Emitter Resistor R2: 10kohm
- Resistor Ratio, R1 / R2: 0.1(Ratio)

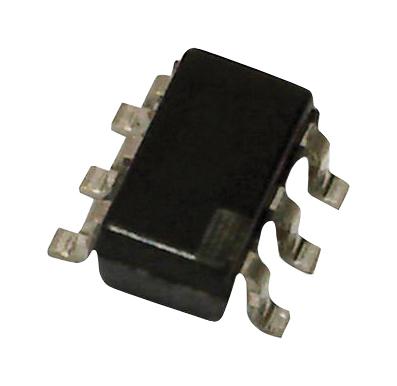

- RF Transistor Case: SOT-457
- No. of Pins: 6 Pin
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- No. of Pins: 6Pins
