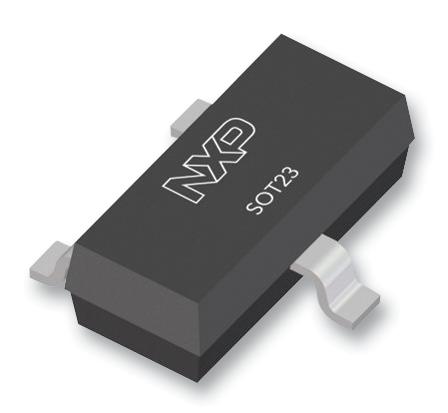

NEXPERIA - PESD5V0U2BT,215 - ESD Protection Device, TVS, SOT-23, 3 Pins, 5 V, PESD5
- Clamping Voltage Vc Max: -
- Diode Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Voltage: 5V
- Power Dissipation Pd: -
- Product Range: PESD5 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Breakdown Voltage: 7V
- Breakdown Voltage Max: 9.5V
- Breakdown Voltage Min: 5.5V
- Breakdown Voltage Range: 5.5V to 9.5V
- Breakover Voltage Min: 5.5V
- Capacitance Cd @ Vr Typ: 2.9pF
- Device Marking: 1U*
- Diode Type: Bidirectional TVS
- Operating Temperature Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Reverse Stand-Off Voltage Vrwm: 5V
- SMD Marking: 1U*
- Stand-off Voltage: 5V
- TVS Polarity: Bidirectional
- Termination Type: Surface Mount Device
