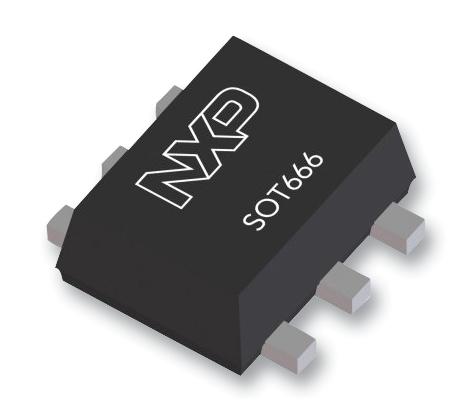

PEMD12,115 Trans NPN/PNP 50V 0.1A SOT666 NEXPERIA

NEXPERIASKU: PEMD12,115 Order code: 1758008

Price:
Sale price€1,08

Tax included Shipping calculated at checkout

Stock:
In stock (560 units), ready to be shipped

Documents et téléchargements

Description

NEXPERIA - PEMD12,115 - Bipolar Pre-Biased / Digital Transistor, BRT, NPN and PNP Complement, 50 V, 100 mA, 47 kohm

  • Digital Transistor Polarity: NPN and PNP Complement
  • Collector Emitter Voltage V(br)ceo: 50V
  • Continuous Collector Current Ic: 100mA
  • Base Input Resistor R1: 47kohm
  • Base-Emitter Resistor R2: 47kohm
  • Resistor Ratio, R1 / R2: -
  • RF Transistor Case: SOT-666
  • No. of Pins: 6 Pin
  • Product Range: PEMD12 Series
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2018)
  • Collector Emitter Saturation Voltage Vce(on): 150mV
  • Current Ic Continuous a Max: 10mA
  • DC Collector Current: 100mA
  • DC Current Gain hFE: 80hFE
  • Hfe Min: 80
  • No. of Pins: 6Pins
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Power Dissipation Pd: 300mW
  • Termination Type: Surface Mount Device
  • Transistor Case Style: SOT-666
  • Transistor Polarity: NPN, PNP
  • Transistor Type: General Purpose
