Description
NEXPERIA - PDTA113ZT,215 - Bipolar Pre-Biased / Digital Transistor, Single PNP, -50 V, -100 mA, 1 kohm, 10 kohm, 0.1 (Ratio)
- Digital Transistor Polarity: Single PNP
- Collector Emitter Voltage V(br)ceo: -50V
- Continuous Collector Current Ic: -100mA
- Base Input Resistor R1: 1kohm
- Base-Emitter Resistor R2: 10kohm
- Resistor Ratio, R1 / R2: 0.1(Ratio)

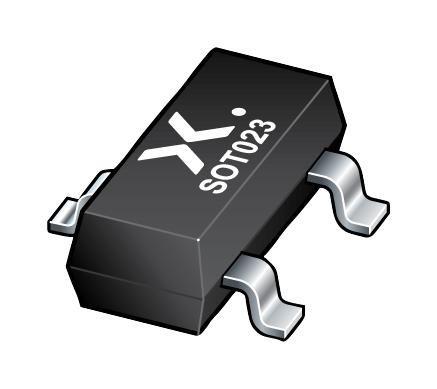

- RF Transistor Case: SOT-23
- No. of Pins: 3 Pin
- Product Range: PDTA113Z Series
- Automotive Qualification Standard: AEC-Q101
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
