Description

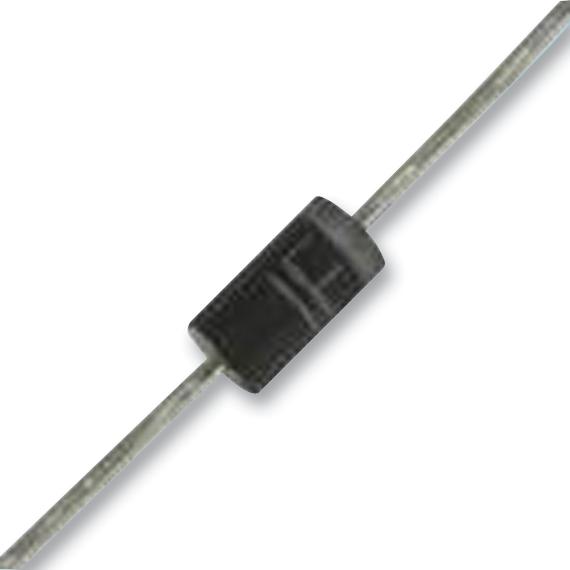

VISHAY - P6KE47CA-E3/54 - TVS Diode, P6KE4, Bidirectional, 40.2 V, 64.8 V, DO-204AC, 2 Pins
- Product Range: P6KE4 Series
- TVS Polarity: Bidirectional
- Reverse Stand-Off Voltage Vrwm: 40.2V
- Clamping Voltage Vc Max: 64.8V
- Diode Case Style: DO-204AC
- No. of Pins: 2Pins
- Breakdown Voltage Min: 44.7V
- Breakdown Voltage Max: 49.4V
- Peak Pulse Power Dissipation: 600W
- Automotive Qualification Standard: -
- SVHC: Lead (15-Jan-2019)
- Breakdown Voltage: 47V
- Breakdown Voltage Range: 44.7V to 49.4V
- Breakover Voltage Min: 44.7V
- Diode Type: Bidirectional TVS
- Operating Temperature Max: 175°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Peak Pulse Current IPP @ 8/20µs: 9.3A
- Peak Pulse Current Ippm: 8.8A
- Power Dissipation Pd: 5W
- Stand-off Voltage: 40.2V
- Termination Type: Axial Leaded
- Test Current: 1mA
- Time Measured: 50ms
