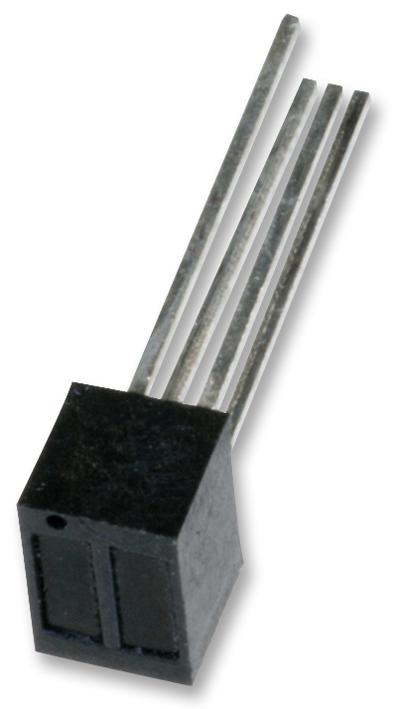

TT ELECTRONICS / OPTEK TECHNOLOGY - OPB706A - Reflective Photo Interrupter, OPB706 Series, Phototransistor, Through Hole, 1.27 mm, 20 mA, 2 Vr
- Sensor Output: Phototransistor
- Sensor Mounting: Through Hole
- Sensing Distance: 1.27mm
- Forward Current If: 20mA
- Reverse Voltage Vr: 2V
- Collector Emitter Voltage V(br)ceo: 24V
- Forward Voltage: 1.7V
- Product Range: OPB706B Series
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 0.4V
- Current Ic Min: 500µA
- External Depth: 4.42mm
- External Length / Height: 4.51mm
- External Width: 6.1mm
- Forward Voltage VF Max: 1.7V
- Input Current: 20mA
- Material: Black Plastic
- No. of Channels: 1Channels
- No. of Pins: 4Pins
- On Current Ice: 25mA
- Optocoupler Output Type: Phototransistor
- Output Voltage: 24V
- Peak Wavelength: 935nm
- Reflective Sensing Distance: 1.27mm
- Reverse Leakage Current Max: 100µA
- Voltage BVceo Min: 24V
- Voltage BVeco Min: 5V
