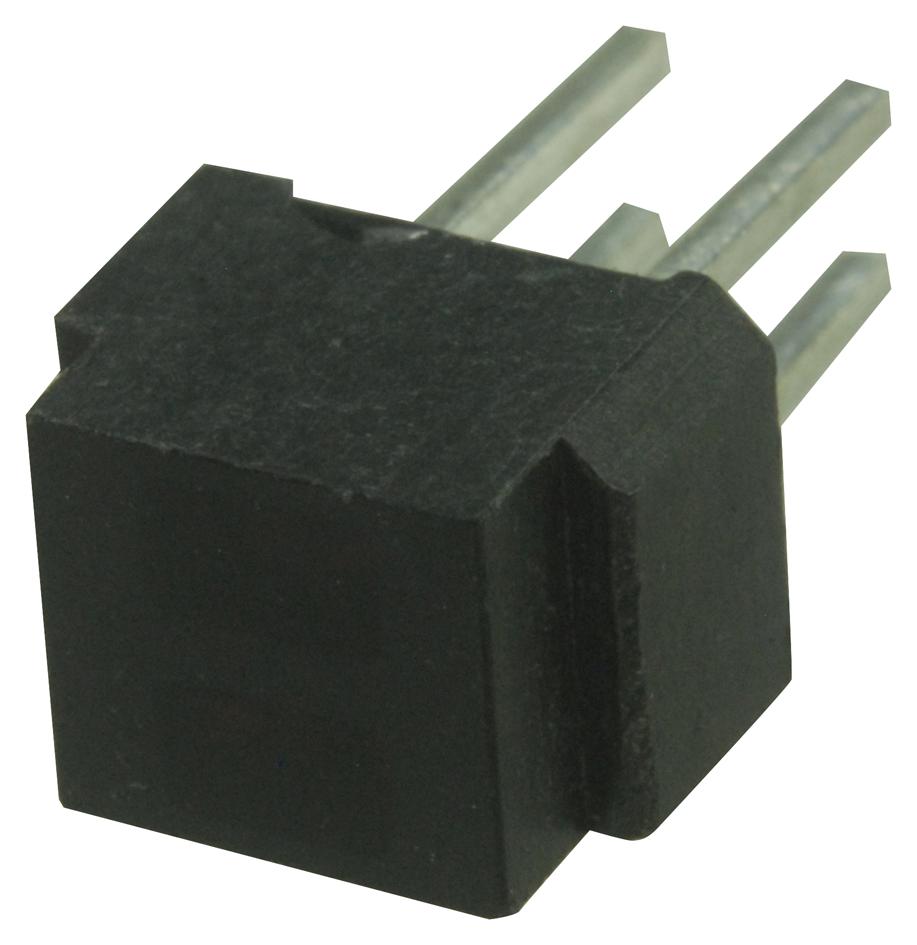

OPB606A Reflective Sensor TT Electronics / OPTEK Technology

TT ELECTRONICS / OPTEK TECHNOLOGYSKU: OPB606A Order code: 1497898

Price:
Sale price€2,65

Tax included Shipping calculated at checkout

Stock:
In stock (1364 units), ready to be shipped

Documents et téléchargements

Description

TT ELECTRONICS / OPTEK TECHNOLOGY - OPB606A - Reflective Photo Interrupter, OPB606 Series, Phototransistor, Through Hole, 1.27 mm, 50 mA, 2 Vr

  • Sensor Output: Phototransistor
  • Sensor Mounting: Through Hole
  • Sensing Distance: 1.27mm
  • Forward Current If: 50mA
  • Reverse Voltage Vr: 2V
  • Collector Emitter Voltage V(br)ceo: 30V
  • Forward Voltage: 1.7V
  • Product Range: OPB607A Series
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 0.4V
  • External Depth: 4.39mm
  • External Length / Height: 4.5mm
  • External Width: 6.1mm
  • Forward Voltage VF Max: 1.7V
  • Input Current: 20mA
  • Lead Spacing: 6.1mm
  • Material: Black opaque Plastic
  • No. of Channels: 1Channels
  • No. of Pins: 4Pins
  • On Current Ic: 500µA
  • Optocoupler Output Type: Phototransistor
  • Output Voltage: 30V
  • Peak Wavelength: 935nm
  • Reflective Sensing Distance: 1.27mm
  • Reverse Leakage Current Max: 100µA
  • Voltage BVceo Min: 30V
  • Voltage BVeco Min: 5V
