Description

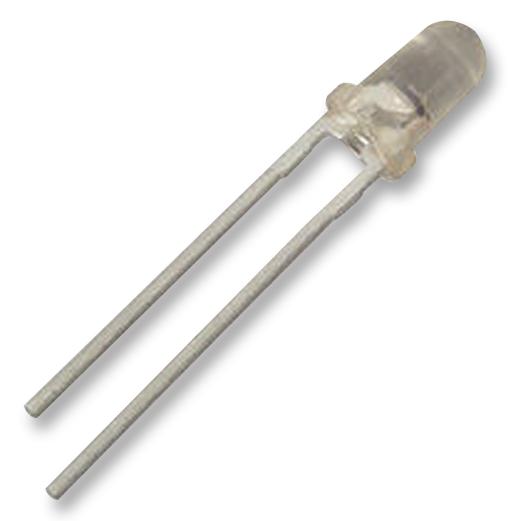

TT ELECTRONICS / OPTEK TECHNOLOGY - OP906 - Photodiode, 1 nA, 935 nm, T-1 (3mm)
- No. of Pins: 2Pins
- Diode Case Style: T-1 (3mm)
- Wavelength of Peak Sensitivity: 935nm
- Angle of Half Sensitivity ±: -
- Dark Current: 1000pA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 100°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- External Length / Height: 4.82mm
- Fall Time tf: 5ns
- Forward Current If: 35µA
- Forward Current If Max: 35µA
- Forward Voltage VF Max: 1.2V
- Head Diameter: 3.05mm
- Lead Length: 12.7mm
- Lead Spacing: 2.54mm
- Operating Temperature Range: -40°C to +100°C
- PIV Max: 60V
- Power Dissipation Pd: 100mW
- Reverse Leakage Current Max: 60nA
- Rise Time: 5ns
- Storage Temperature Max: 100°C
- Storage Temperature Min: -40°C
- Wavelength Typ: 935nm
