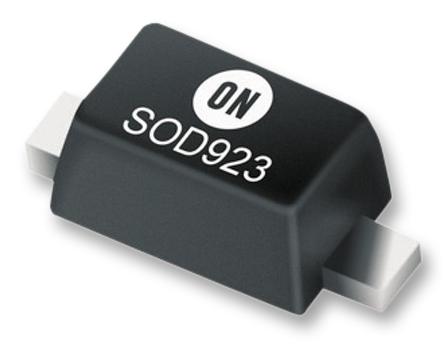

ONSEMI - NSR0130P2T5G - Small Signal Schottky Diode, Single, 30 V, 100 mA, 525 mV, 1 A, 125 °C
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 30V
- Forward Current If(AV): 100mA
- Forward Voltage VF Max: 525mV
- Forward Surge Current Ifsm Max: 1A
- Operating Temperature Max: 125°C
- Diode Case Style: SOD-923
- No. of Pins: 2Pins
- Product Range: NSR01 Series
- Automotive Qualification Standard: AEC-Q101
- SVHC: No SVHC (27-Jun-2018)
- Diode Type: Schottky
