Description

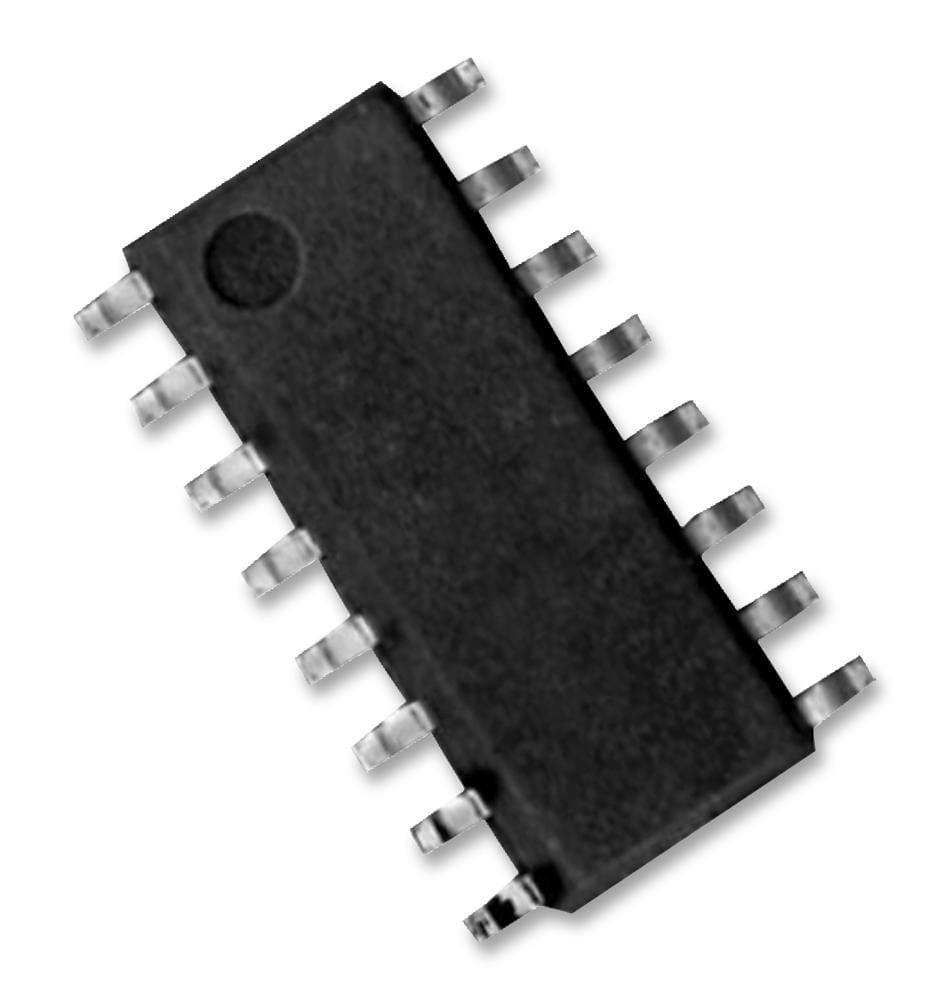

VISHAY - NOMCA16032001ATS - Fixed Network Resistor, 2 kohm, Isolated, 8 Resistors, DIP, Gull Wing, ± 0.1%
- Resistance: 2kohm
- Product Range: NOMCA Series
- No. of Elements: 8Elements
- Network Circuit Type: Isolated
- Resistor Case Style: DIP
- No. of Pins: 16Pins
- Voltage Rating: 100V
- Power Rating per Element: 100mW
- Resistance Tolerance: ± 0.1%
- Temperature Coefficient: ± 25ppm/°C
- Automotive Qualification Standard: -
- Power Rating: 500mW
- Resistance R1: 2kohm
- Resistor Mounting: Surface Mount Device
