Description

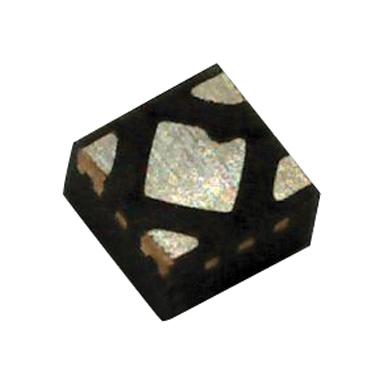

ONSEMI - NCV8161AMX180TBG - Fixed LDO Voltage Regulator, 1.9 V to 5.5 V, 325 mV Dropout, 1.8 V / 450 mA out, XDFN-4
- Output Type: Fixed
- Input Voltage Min: 1.9V
- Input Voltage Max: 5.5V
- Fixed Output Voltage Nom.: 1.8V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 450mA
- Dropout Voltage Vdo: 325mV
- LDO Regulator Case Style: XDFN
- No. of Pins: 4Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 1.8V 450mA LDO Voltage Regulators
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
