Description

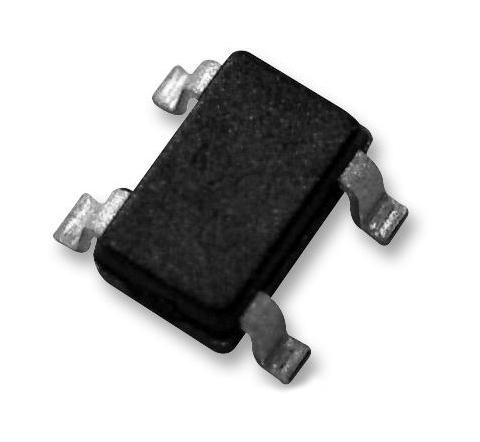

ONSEMI - NCP698SQ33T1G - Fixed LDO Voltage Regulator, 6V in, 370mV Dropout, 3.3V/150mA out, SC-82AB-4
- Output Type: Fixed
- Input Voltage Min: -
- Input Voltage Max: 6V
- Fixed Output Voltage Nom.: 3.3V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 150mA
- Dropout Voltage Vdo: 370mV
- LDO Regulator Case Style: SC-82AB
- No. of Pins: 4Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: 3.3V 150mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Output Voltage Nom.: 3.3V
