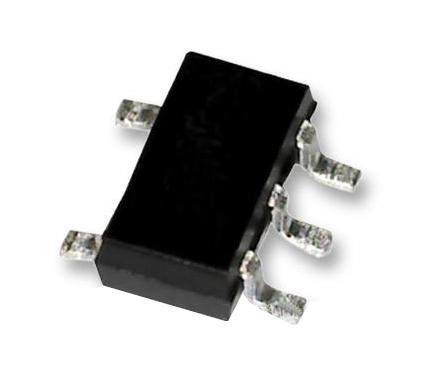

ONSEMI - NCP600SNADJT1G - LDO Voltage Regulator, Adjustable, 1.75V to 6V in, 150mV drop, 1.25V to 5V/150mA out, TSOP-5
- Output Type: Adjustable
- Input Voltage Min: 1.75V
- Input Voltage Max: 6V
- Fixed Output Voltage Nom.: -
- Adjustable Output Voltage Min: 1.25V
- Adjustable Output Voltage Max: 5V
- Output Current: 150mA
- Dropout Voltage Vdo: 150mV
- LDO Regulator Case Style: TSOP
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Output Voltage Max: 5V
- Output Voltage Min: 1.25V
