Description

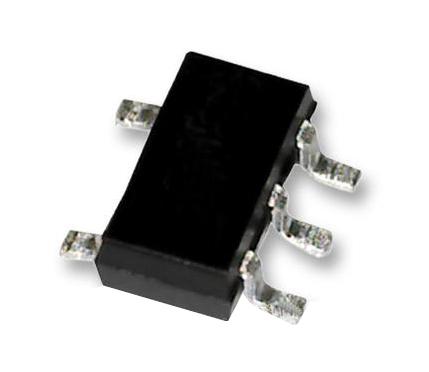

ONSEMI - NCP551SN18T1G - Fixed LDO Voltage Regulator, 12V in, 130mV Dropout, 1.8V/150mA out, TSOP-5
- Output Type: Fixed
- Input Voltage Min: -
- Input Voltage Max: 12V
- Fixed Output Voltage Nom.: 1.8V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 150mA
- Dropout Voltage Vdo: 130mV
- LDO Regulator Case Style: TSOP
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: 1.8V 150mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Accuracy %: 0.02%
- No. of Outputs: 1Outputs
- Operating Temperature Range: -40°C to +85°C
- Output Voltage Nom.: 1.8V
- Primary Input Voltage: 12V
- Supply Voltage Min: 2.8V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: LDO Linear
