Description

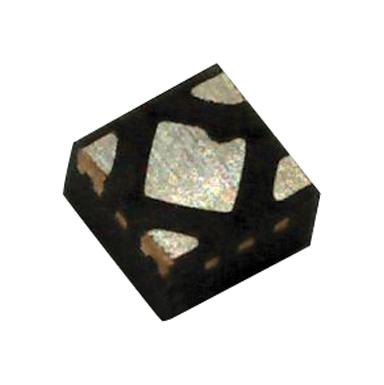

ONSEMI - NCP163AMX300TBG - Fixed LDO Voltage Regulator, 2.2 V to 5.5 V in, 90 mV drop, 3 V and 250 mA out, XDFN-4
- Output Type: Fixed
- Input Voltage Min: 2.2V
- Input Voltage Max: 5.5V
- Fixed Output Voltage Nom.: 3V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 250mA
- Dropout Voltage Vdo: 90mV
- LDO Regulator Case Style: XDFN
- No. of Pins: 4Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 3V 250mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
