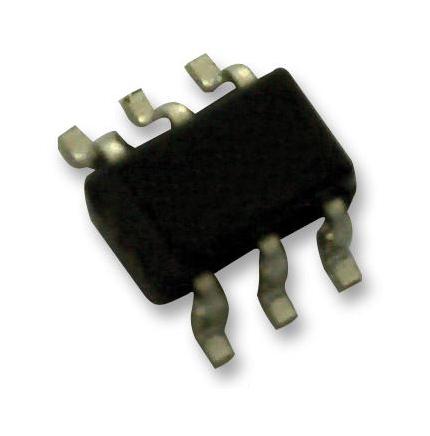

ONSEMI - NC7SZ157P6X - Multiplexer, 1 Channels, 2:1, 1.65 V to 5.5 V, SC-70-6
- Logic Family / Base Number: NC7S157
- Logic Type: Multiplexer
- No. of Channels: 1Channels
- Line Configuration: 2
- Supply Voltage Min: 1.65V
- Supply Voltage Max: 5.5V
- Logic Case Style: SC-70
- No. of Pins: 6Pins
- Logic IC Family: NC7S
- Logic IC Base Number: 74157
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 7
- Logic IC Base Number: 7
- Logic IC Function: Non Inverting Multiplexer
- Operating Temperature Range: -40°C to +85°C
- Output Current Max: 32mA
- Ratio: 2
- Supply Voltage Range: 1.65V to 5.5V
- Termination Type: Surface Mount Device
