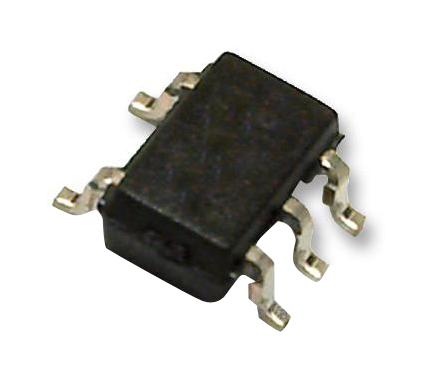

ONSEMI - NC7SV04P5X - Logic IC, Inverter, Single, 1 Inputs, 5 Pins, SC-70, 7S04
- Logic Family / Base Number: NC7S04
- Logic Type: Inverter
- Output Current: 24mA
- No. of Inputs: 1
- Supply Voltage Min: 900mV
- Supply Voltage Max: 3.6V
- Logic Case Style: SC-70
- No. of Pins: 5Pins
- Logic IC Family: NC7S
- Logic IC Base Number: 7404
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 704
- Logic IC Base Number: 7S04
- Logic IC Function: ULP-A Inverter
- Operating Temperature Range: -40°C to +85°C
- Output Current Max: 32mA
- Supply Voltage Range: 900mV to 3.6V
- Termination Type: Surface Mount Device
