Description

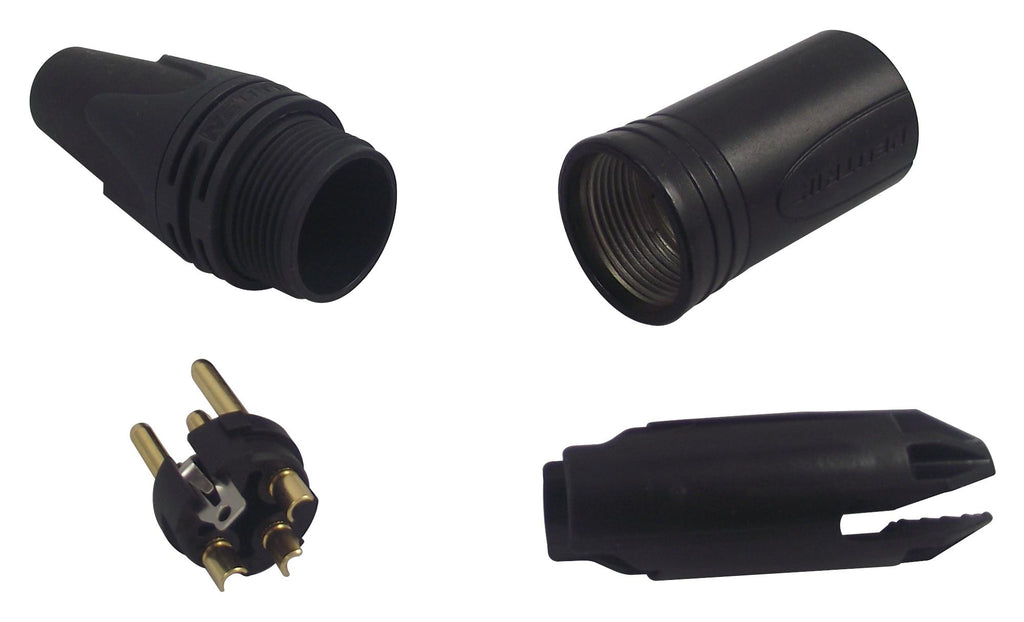

NEUTRIK - NC3MXX-B - XLR Connector, 3 Contacts, Plug, Cable Mount, Gold Plated Contacts, Metal Body, XX
- No. of Contacts: 3Contacts
 - Gender: Plug
 - Connector Mounting: Cable Mount
 - Contact Plating: Gold Plated Contacts
 - Connector Body Material: Metal Body
 - Product Range: XX Series
 - SVHC: No SVHC (27-Jun-2018)
 - Cable Diameter Max: 8mm
 - Cable Diameter Min: 3.5mm
 - Colour: Black
 - Connector Colour: Black
 - Contact Resistance: 3mohm
 - Contact Termination: Solder
 - Current Rating: 16A
 - Dielectric Material: PA 6.6, 30% GR
 - Flammability Rating: UL94-HB
 - Insertion Force: 20N
 - Insulation Resistance: 2Gohm
 - Material: Zinc diecast, Ni plated
 - No. of Mating Cycles: 1000
 - Operating Temperature Max: +80°C
 - Operating Temperature Min: -30°C
 - Proof Voltage: 1500VDC
 - Standard: IEC 61076-2-103
 - Termination Method: Solder
 - Wire Area Size Max: 2.5mm²
 - Wire Size AWG Max: 14AWG
 - XLR Capacitance: 4pF
