Description

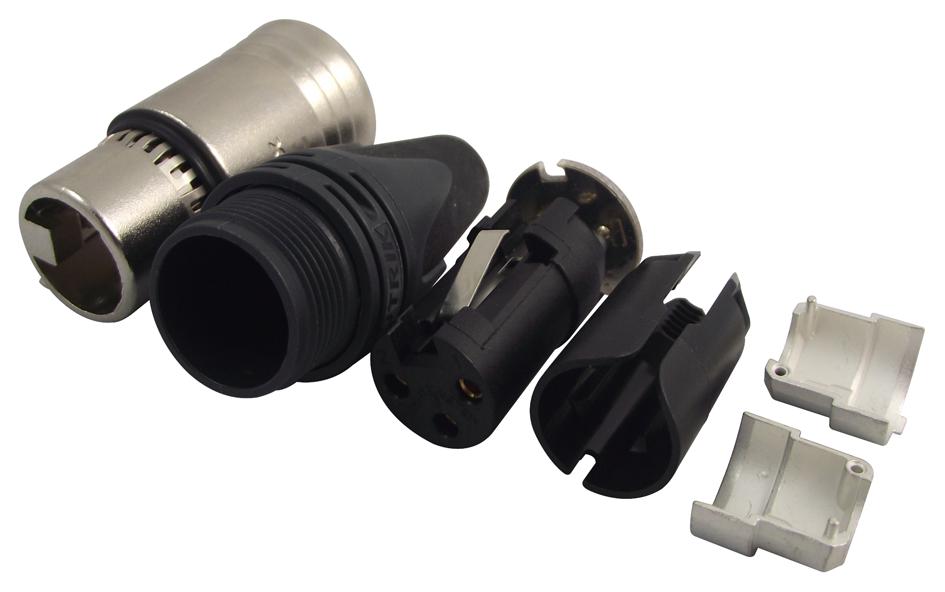

NEUTRIK - NC3FXX-EMC - XLR Connector, 3 Contacts, Socket, Cable Mount, Gold Plated Contacts, Metal Body, XX
- No. of Contacts: 3Contacts
- Gender: Socket
- Connector Mounting: Cable Mount
- Contact Plating: Gold Plated Contacts
- Connector Body Material: Metal Body
- Product Range: XX Series
- SVHC: No SVHC (27-Jun-2018)
- Attenuation: 55dB
- Cable Diameter Max: 7mm
- Cable Diameter Min: 4mm
- Colour: Nickel
- Connector Colour: Natural
- Contact Resistance: 3mohm
- Contact Termination: Solder
- Current Rating: 5A
- Dielectric Material: PA 6.6, 30% GR
- Flammability Rating: UL94-HB
- Insulation Resistance: 2Gohm
- Material: Zinc Die-cast
- No. of Mating Cycles: 1000
- Operating Temperature Max: +80°C
- Operating Temperature Min: -30°C
- Proof Voltage: 1500VDC
- Termination Method: Solder
- Voltage Rating VAC: 150V
- Wire Size AWG Max: 20AWG
- Wire Size AWG Min: 24AWG
