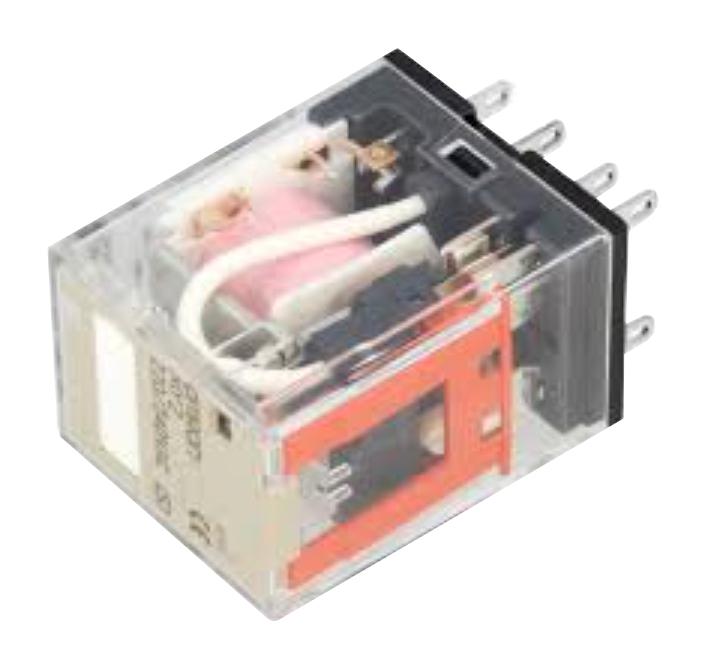

OMRON - MY2 24ACS - Power Relay, DPDT, 24 VAC, 10 A, MY, Socket, Non Latching
- Contact Configuration: DPDT
 - Coil Voltage: 24VAC
 - Contact Current: 10A
 - Product Range: MY Series
 - Relay Mounting: Socket
 - Coil Type: Non Latching
 - Contact Voltage VAC: 250VAC
 - Relay Terminals: Quick Connect
 - Contact Voltage VDC: 30VDC
 - Contact Material: Silver
 - Coil Resistance: 180ohm
 - AC Coil Power: 1.2VA
 - Approval Bodies: CSA, UL, VDE
 - Approvals & Standards: CSA, UL
 - Coil Current: 53.8mA
 - Coil Operating Lower Percent Limit: 80%
 - Coil Operating Upper Percent Limit: 110%
 - Coil Voltage VAC Nom: 24V
 - Contact Current AC Max: 10A
 - Contact Current DC Max: 10A
 - Contact Current Max: 10A
 - Contact Voltage AC Max: 250V
 - Contact Voltage AC Nom: 250V
 - Contact Voltage DC Max: 30V
 - Contact Voltage DC Nom: 30V
 - DC Coil Power: 0.9W
 - External Depth: 36mm
 - External Height: 28mm
 - External Length / Height: 28mm
 - External Width: 21.5mm
 - Nom Operating Power: 1.2VA
 - Operating Temperature Max: 70°C
 - Operating Temperature Min: -55°C
 - Operating Time: 20ms
 - Relay Type: Power
 - Release Time: 20ms
