MUSB-05-S-Ab-Sm-A Mini USB, 2.0 Type Ab, Receptacle, SMT Samtec

SAMTECSKU: MUSB-05-S-AB-SM-A Order code: 1753807

Price:
Sale price€3,06

Tax included Shipping calculated at checkout

Stock:
In stock (420 units), ready to be shipped

Documents et téléchargements

Description

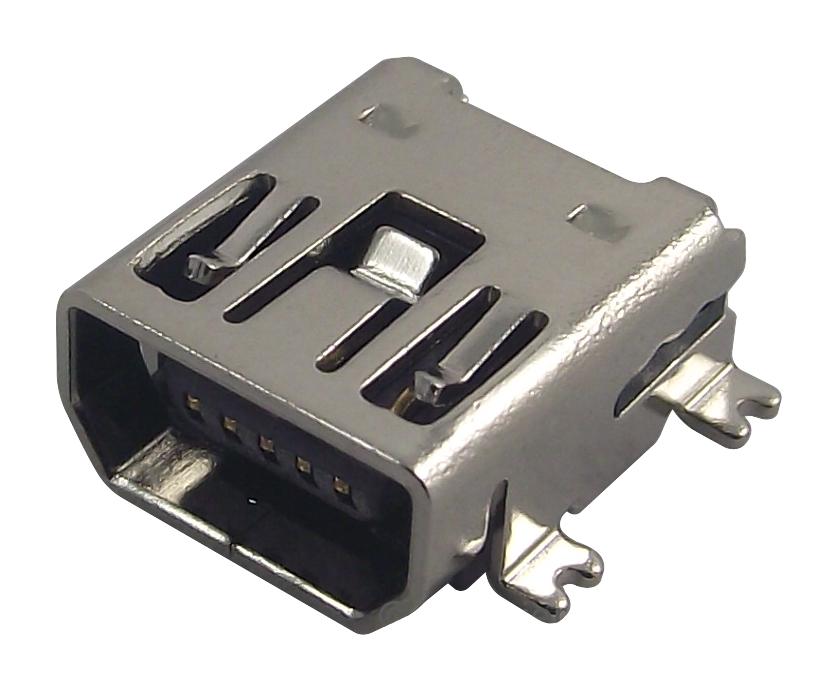

SAMTEC - MUSB-05-S-AB-SM-A - USB Connector, Mini USB Type AB, USB 2.0, Receptacle, 5 Ways, Surface Mount, Right Angle

  • USB Connector Type: Mini USB Type AB
  • USB Standard: USB 2.0
  • Gender: Receptacle
  • No. of Positions: 5Ways
  • Connector Mounting: Surface Mount
  • Orientation: Right Angle
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold Plated Contacts
  • Product Range: MUSB Series
  • SVHC: No SVHC (15-Jan-2018)
  • Connector Mounting Orientation: PC Board
  • Connector Type: USB Mini A/B
  • Contact Resistance: 50mohm
  • Contact Termination: Surface Mount Right Angle
  • Contact Termination Type: Surface Mount
  • Current Rating: 1A
  • No. of Contacts: 5Contacts
  • No. of Mating Cycles: 1500
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -50°C
  • Termination Method: Solder
  • Voltage Rating VAC: 30V
