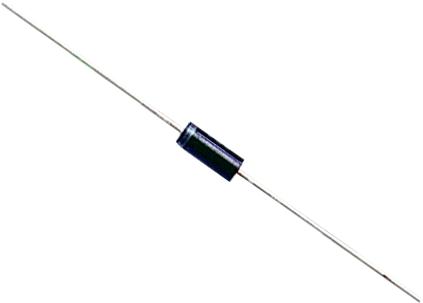

MUR420G Diode, Power Rectifier, uF ONSEMI

ONSEMISKU: MUR420G Order code: 1651054

Price:
Sale price€1,18

Tax included Shipping calculated at checkout

Stock:
In stock (1730 units), ready to be shipped

Documents et téléchargements

Description

ONSEMI - MUR420G - Fast / Ultrafast Diode, 200 V, 4 A, Single, 890 mV, 25 ns, 125 A

  • Repetitive Reverse Voltage Vrrm Max: 200V
  • Forward Current If(AV): 4A
  • Diode Configuration: Single
  • Forward Voltage VF Max: 890mV
  • Reverse Recovery Time trr Max: 25ns
  • Forward Surge Current Ifsm Max: 125A
  • Operating Temperature Max: 175°C
  • Diode Case Style: DO-201AD
  • No. of Pins: 2 Pin
  • Product Range: MUR42 Series
  • Automotive Qualification Standard: -
  • SVHC: Lead (27-Jun-2018)
  • Current Ifsm: 125A
  • Diode Type: Fast Recovery
  • Junction Temperature Tj Max: 175°C
  • No. of Pins: 2Pins
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +175°C
  • Reverse Recovery Time trr Typ: 25ns
  • Termination Type: Axial Leaded
