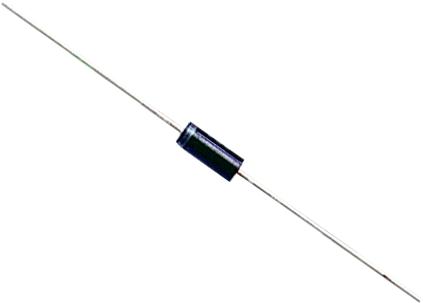

TAIWAN SEMICONDUCTOR - MUR160 - Fast / Ultrafast Diode, 600 V, 1 A, Single, 1.35 V, 60 ns, 35 A
- Repetitive Reverse Voltage Vrrm Max: 600V
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.35V
- Reverse Recovery Time trr Max: 60ns
- Forward Surge Current Ifsm Max: 35A
- Operating Temperature Max: 175°C
- Diode Case Style: DO-41 (DO-204AL)
- No. of Pins: 2 Pin
- Product Range: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Current Ifsm: 35A
- Diode Type: Fast Recovery
- External Diameter: 3.6mm
- External Length / Height: 7.6mm
- Junction Temperature Tj Max: 175°C
- Junction Temperature Tj Min: -65°C
- Junction to Case Thermal Resistance A: 50°C/W
- No. of Pins: 2Pins
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +175°C
- Reverse Recovery Time trr Typ: 50ns
- Termination Type: Axial Leaded
