MSS1P4-m3/89A Diode, Schottky, Rectifier, 1A, 40V Vishay

VISHAYSKU: MSS1P4-M3/89A Order code: 1714315

Price:
Sale price€0,37

Tax included Shipping calculated at checkout

Stock:
In stock (8535 units), ready to be shipped

Documents et téléchargements

Description

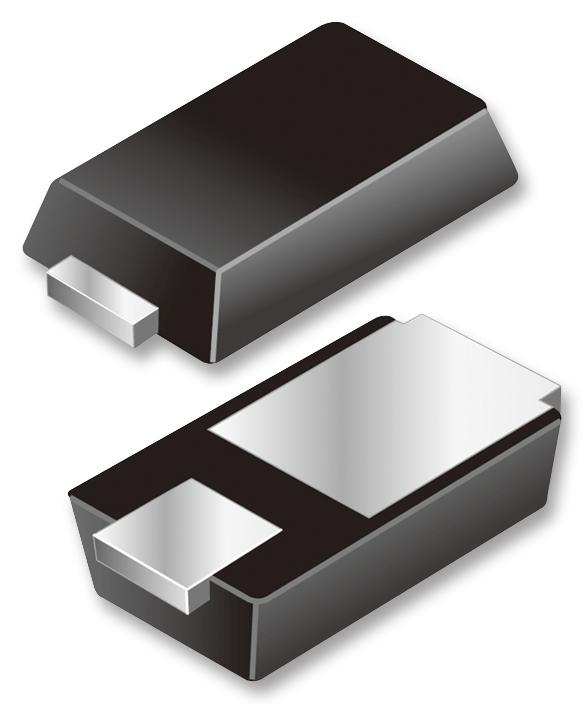

VISHAY - MSS1P4-M3/89A - Schottky Rectifier, 40 V, 1 A, Single, MicroSMP, 2 Pins, 460 mV

  • Repetitive Reverse Voltage Vrrm Max: 40V
  • Forward Current If(AV): 1A
  • Diode Configuration: Single
  • Diode Case Style: MicroSMP
  • No. of Pins: 2Pins
  • Forward Voltage VF Max: 460mV
  • Forward Surge Current Ifsm Max: 25A
  • Operating Temperature Max: 150°C
  • Product Range: MSS1P Series
  • Automotive Qualification Standard: -
  • SVHC: Lead (15-Jan-2019)
  • Current Ifsm: 25A
  • Diode Type: Schottky
  • External Depth: 0.75mm
  • External Length / Height: 2.3mm
  • External Width: 1.4mm
  • Junction Temperature Tj Max: 150°C
  • Junction Temperature Tj Min: -55°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Semiconductor Technology: Si
  • Termination Type: Surface Mount Device
