MSS1278-822MLD Inductor, 8.2UH, 5.9A, 20%, Pwr, 20MHz COILCRAFT

COILCRAFTSKU: MSS1278-822MLD Order code: 2288498

Price:
Sale price€5,83

Tax included Shipping calculated at checkout

Stock:
In stock (334 units), ready to be shipped

Documents et téléchargements

Description

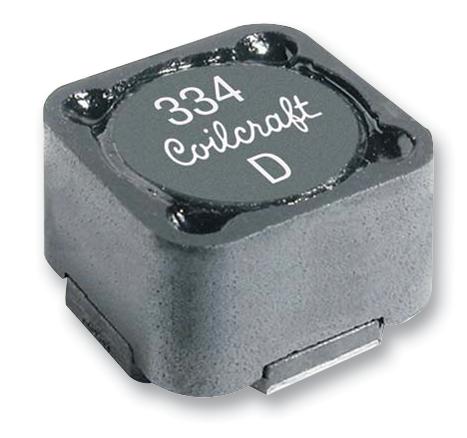

COILCRAFT - MSS1278-822MLD - Power Inductor (SMD), 8.2 µH, 5.9 A, Shielded, 10.1 A, MSS1278

  • Inductance: 8.2µH
  • RMS Current (Irms): 5.9A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 10.1A
  • Product Range: MSS1278 Series
  • Power Inductor Case: 12.3mm x 12.3mm x 8.05mm
  • DC Resistance Max: 0.0226ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 20MHz
