MSS1278-473MLD Inductor, 47UH, 2.9A, 20%, Pwr, 7.5MHz COILCRAFT

COILCRAFTSKU: MSS1278-473MLD Order code: 2288508

Price:
Sale price€5,86

Tax included Shipping calculated at checkout

Stock:
In stock (608 units), ready to be shipped

Documents et téléchargements

Description

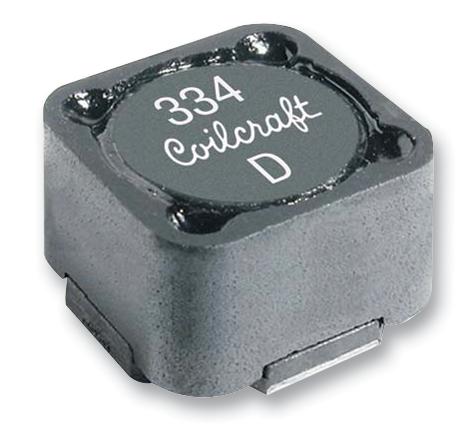

COILCRAFT - MSS1278-473MLD - Power Inductor (SMD), 47 µH, 2.9 A, Shielded, 4.4 A, MSS1278, 12.3mm x 12.3mm x 8.05mm

  • Inductance: 47µH
  • RMS Current (Irms): 2.9A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 4.4A
  • Product Range: MSS1278 Series
  • Power Inductor Case: 12.3mm x 12.3mm x 8.05mm
  • DC Resistance Max: 0.0804ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 7.5MHz
