Inductors/Spoelen

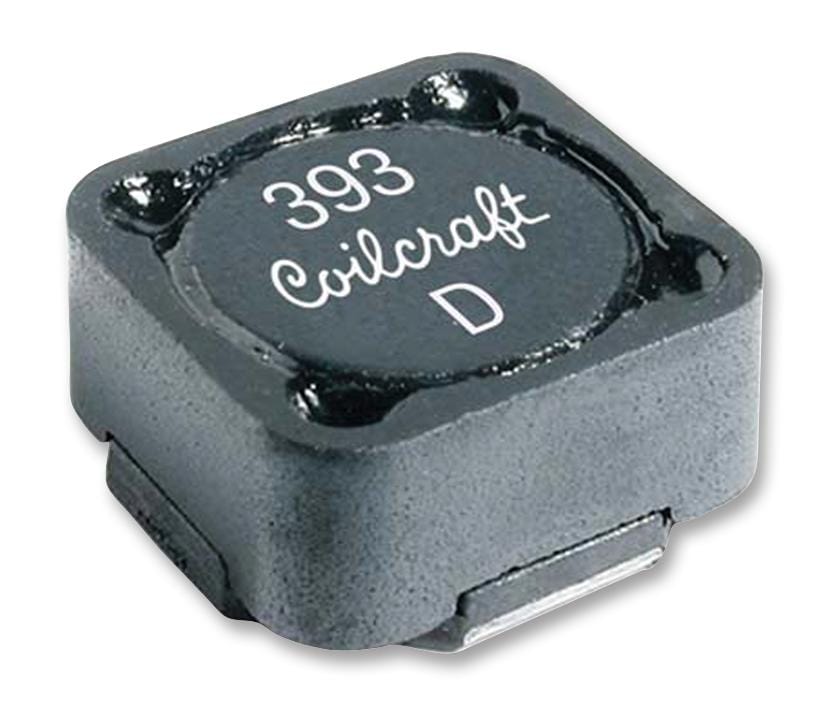

COILCRAFT Power Inductors - SMD MSS1260T-473MLD INDUCTOR, 47UH, 2.5A, 20%, PWR, 11.6MHZ COILCRAFT 2288470 MSS1260T-473MLD
Roll over image to zoom in Click on image to zoom
COILCRAFT Power Inductors - SMD MSS1260T-473MLD INDUCTOR, 47UH, 2.5A, 20%, PWR, 11.6MHZ COILCRAFT 2288470 MSS1260T-473MLD

MSS1260T-473MLD INDUCTOR, 47UH, 2.5A, 20%, PWR, 11.6MHZ COILCRAFT

COILCRAFTSKU: MSS1260T-473MLD Order code: 2288470
Price:
€6,04

Tax included Shipping calculated at checkout

Stock:
Sold out

Documenten en downloads

Description

COILCRAFT - MSS1260T-473MLD - Power Inductor (SMD), 47 µH, 2.5 A, Shielded, 2.84 A, MSS1260T, 12.3mm x 12.3mm x 6mm

  • Inductance: 47µH
  • RMS Current (Irms): 2.5A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 2.84A
  • Product Range: MSS1260T Series
  • Power Inductor Case: 12.3mm x 12.3mm x 6mm
  • DC Resistance Max: 0.082ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 11.6MHz
