Description

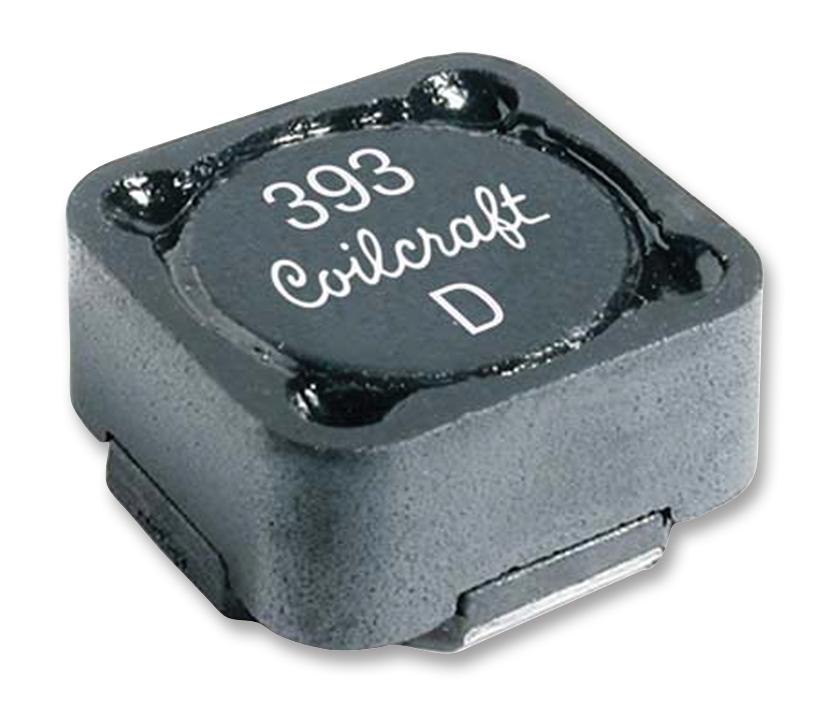

COILCRAFT - MSS1260T-334KLD - Power Inductor (SMD), 330 µH, 1.16 A, Shielded, 1.04 A, MSS1260T
- Inductance: 330µH
- RMS Current (Irms): 1.16A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.04A
- Product Range: MSS1260T Series
- Power Inductor Case: 12.3mm x 12.3mm x 6mm
- DC Resistance Max: 0.494ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 4MHz
