MSS1260T-153MLD Inductor, 15UH, 3.5A, 20%, Pwr, 18MHZ COILCRAFT

COILCRAFTSKU: MSS1260T-153MLD Order code: 2288464

Price:
Sale price€6,04

Tax included Shipping calculated at checkout

Stock:
In stock (75 units), ready to be shipped

Documents et téléchargements

Description

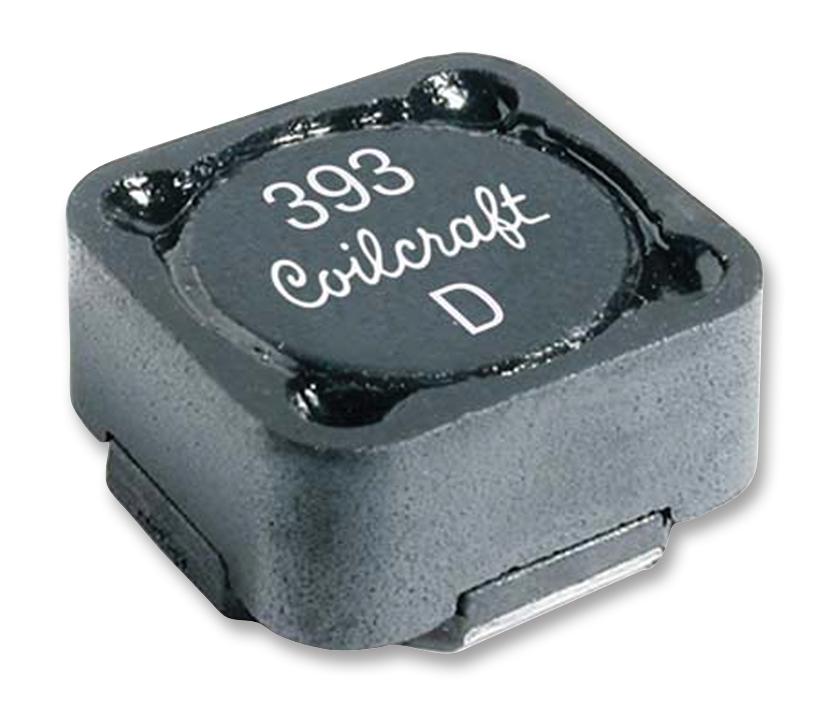

COILCRAFT - MSS1260T-153MLD - Power Inductor (SMD), 15 µH, 3.5 A, Shielded, 5.34 A, MSS1260T

  • Inductance: 15µH
  • RMS Current (Irms): 3.5A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 5.34A
  • Product Range: MSS1260T Series
  • Power Inductor Case: 12.3mm x 12.3mm x 6mm
  • DC Resistance Max: 0.032ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 18MHz
