MSS1260-473MLD Inductor, 47UH, 2.5A, 20%, Pwr, 12MHz COILCRAFT

COILCRAFTSKU: MSS1260-473MLD Order code: 2288433

Price:
Sale price€5,49

Tax included Shipping calculated at checkout

Stock:
In stock (283 units), ready to be shipped

Documents et téléchargements

Description

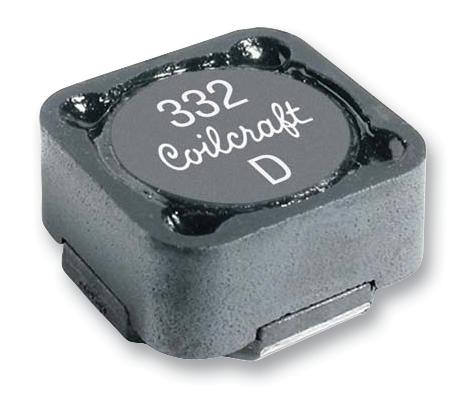

COILCRAFT - MSS1260-473MLD - Power Inductor (SMD), 47 µH, 2.5 A, Shielded, 2.66 A, MSS1260, 12.3mm x 12.3mm x 6mm

  • Inductance: 47µH
  • RMS Current (Irms): 2.5A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 2.66A
  • Product Range: MSS1260 Series
  • Power Inductor Case: 12.3mm x 12.3mm x 6mm
  • DC Resistance Max: 0.082ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 12MHz
