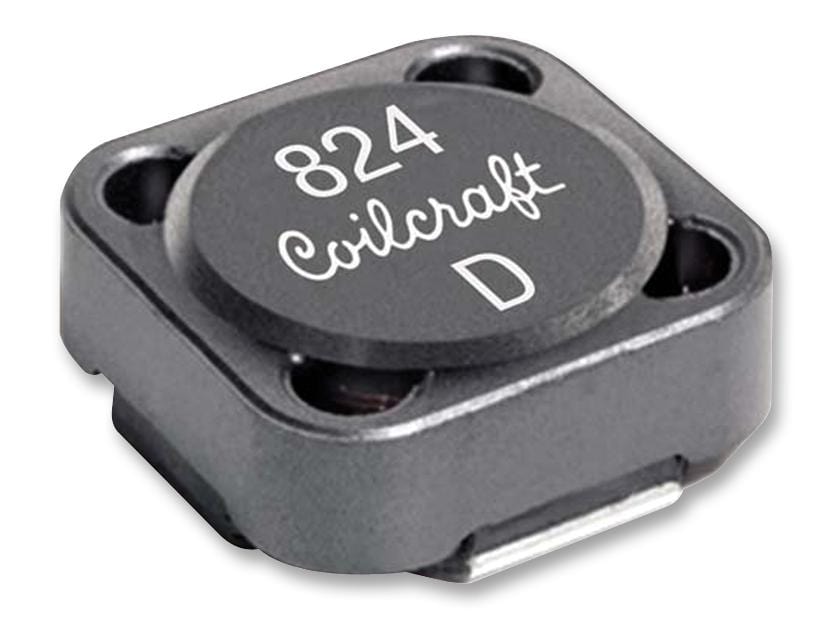

MSS1246T-473MLC Inductor, 47UH, 2.1A, 20%, Pwr, 12.3MHz COILCRAFT

COILCRAFT - MSS1246T-473MLC - Power Inductor (SMD), 47 µH, 2.1 A, Shielded, 2.7 A, MSS1246T, 12mm x 12mm x 4.6mm

• Inductance: 47µH
• RMS Current (Irms): 2.1A
• Inductor Construction: Shielded
• Saturation Current (Isat): 2.7A
• Product Range: MSS1246T Series
• Power Inductor Case: 12mm x 12mm x 4.6mm
• DC Resistance Max: 0.134ohm
• Inductance Tolerance: ± 20%
• SVHC: No SVHC (15-Jan-2019)
• Automotive Qualification Standard: AEC-Q200
• Self Resonant Frequency Min: 12.3MHz
