MSS1246-473MLB Inductor, 47UH, 2.1A, 20%, Pwr, 12.3MHz COILCRAFT

COILCRAFTSKU: MSS1246-473MLB Order code: 2288364

Price:
Sale price€4,69

Tax included Shipping calculated at checkout

Stock:
In stock (245 units), ready to be shipped

Documents et téléchargements

Description

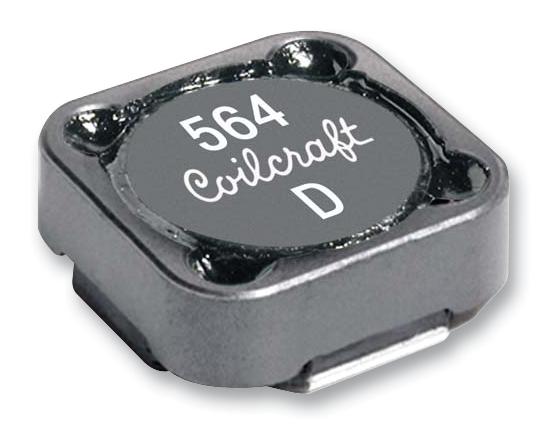

COILCRAFT - MSS1246-473MLB - Power Inductor (SMD), 47 µH, 2.1 A, Shielded, 2.66 A, MSS1246

  • Inductance: 47µH
  • RMS Current (Irms): 2.1A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 2.66A
  • Product Range: MSS1246 Series
  • Power Inductor Case: 12mm x 12mm x 4.6mm
  • DC Resistance Max: 0.134ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 12.3MHz
