Description

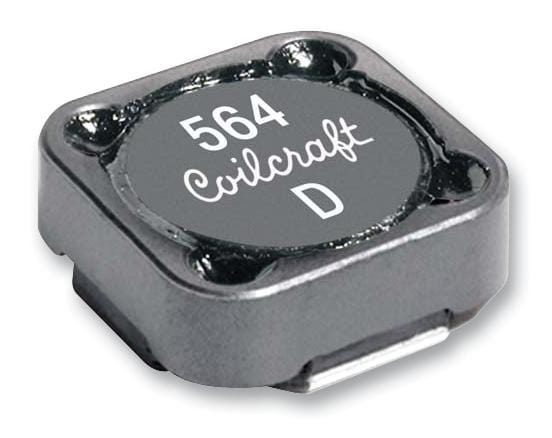

COILCRAFT - MSS1246-124KLC - Power Inductor (SMD), 120 µH, 1.42 A, Shielded, 1.62 A, MSS1246
- Inductance: 120µH
- RMS Current (Irms): 1.42A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.62A
- Product Range: MSS1246 Series
- Power Inductor Case: 12mm x 12mm x 4.6mm
- DC Resistance Max: 0.3192ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 7.2MHz
