MSS1210-223MED Inductor, 22UH, 6.7A, 20%, Pwr, 9.5MHz COILCRAFT

COILCRAFTSKU: MSS1210-223MED Order code: 2288332

Price:
Sale price€7,04

Tax included Shipping calculated at checkout

Stock:
In stock (2296 units), ready to be shipped

Documents et téléchargements

Description

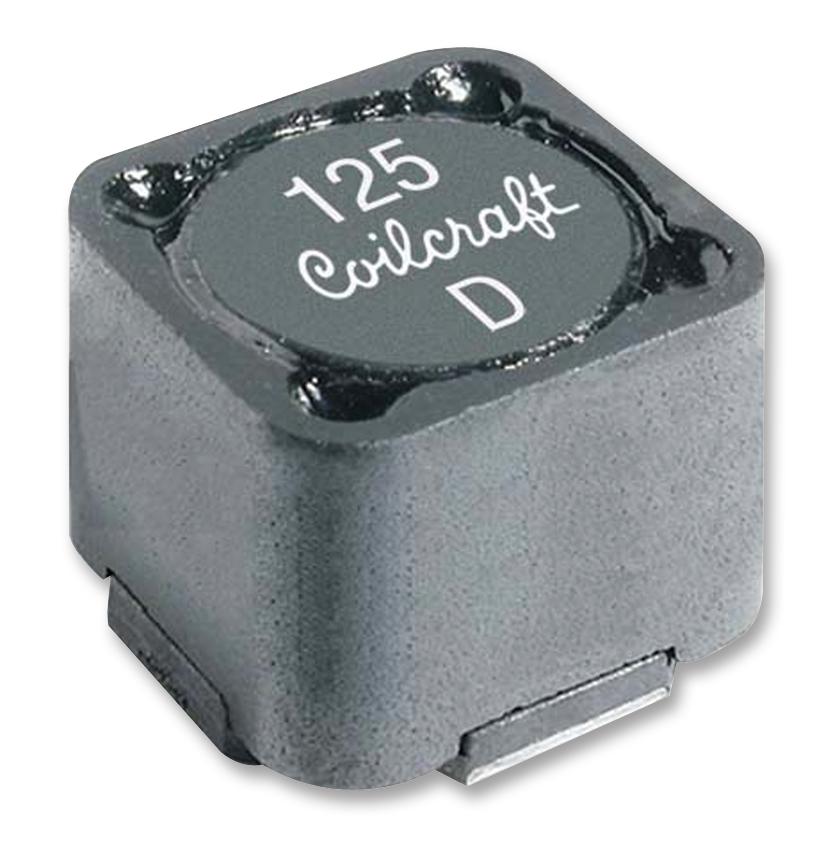

COILCRAFT - MSS1210-223MED - Power Inductor (SMD), 22 µH, 6.7 A, Shielded, 6.8 A, MSS1210

  • Inductance: 22µH
  • RMS Current (Irms): 6.7A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 6.8A
  • Product Range: MSS1210 Series
  • Power Inductor Case: 12.3mm x 12.3mm x 10mm
  • DC Resistance Max: 0.03ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 9.5MHz
