Description

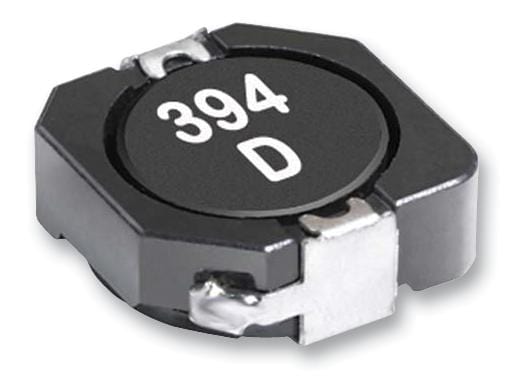

COILCRAFT - MSS1038-274KLC - Power Inductor (SMD), 270 µH, 860 mA, Shielded, 660 mA, MSS1038, 10.2mm x 10mm x 3.8mm
- Inductance: 270µH
- RMS Current (Irms): 860mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 660mA
- Product Range: MSS1038 Series
- Power Inductor Case: 10.2mm x 10mm x 3.8mm
- DC Resistance Max: 0.926ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 4MHz
