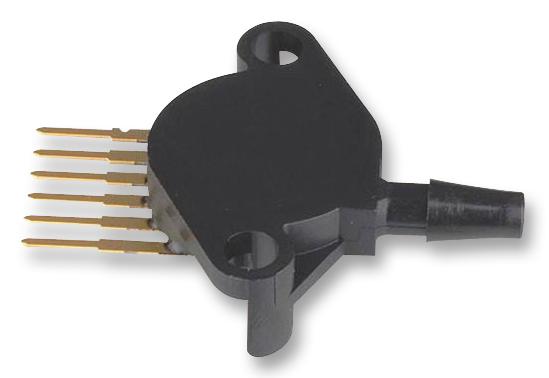

MPX5700AP Sensor, Pressure Sensor, 867B-04-6 NXP

NXPSKU: MPX5700AP Order code: 1391623

Price:
Sale price€35,10

Tax included Shipping calculated at checkout

Stock:
In stock (1067 units), ready to be shipped

Documents et téléchargements

Description

NXP - MPX5700AP - Pressure Sensor, Absolute, 6.4 mV/kPa, 15 kPa, 700 kPa, 4.75 V, 5.25 V

  • Pressure Type: Absolute
  • Sensitivity, V/P: 6.4mV/kPa
  • Operating Pressure Min: 15kPa
  • Operating Pressure Max: 700kPa
  • Supply Voltage Min: 4.75V
  • Supply Voltage Max: 5.25V
  • Sensor Case Style: SIP
  • No. of Pins: 6Pins
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: MPX5700 Series
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Port Style: Single Port
  • Supply Current: 7mA
