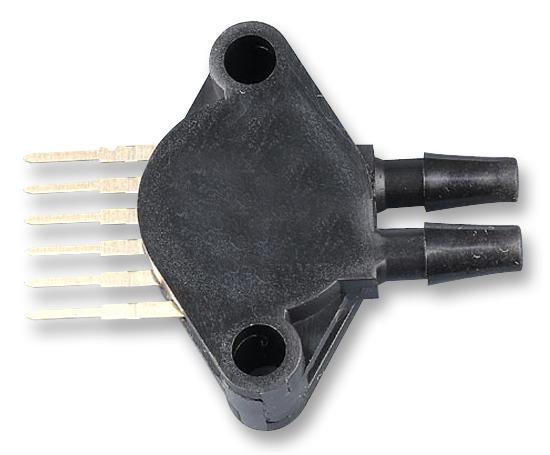

MPX5500DP Sensor, Pressure Gauge 75PSI, 867C6 NXP

NXPSKU: MPX5500DP Order code: 1457143

Price:
Sale price€23,04

Tax included Shipping calculated at checkout

Stock:
In stock (3296 units), ready to be shipped

Documents et téléchargements

Description

NXP - MPX5500DP - Pressure Sensor, Differential, 9 mV/kPa, 0 kPa, 500 kPa, 4.75 V, 5.25 V

  • Pressure Type: Differential
  • Sensitivity, V/P: 9mV/kPa
  • Operating Pressure Min: 0kPa
  • Operating Pressure Max: 500kPa
  • Supply Voltage Min: 4.75V
  • Supply Voltage Max: 5.25V
  • Sensor Case Style: SIP
  • No. of Pins: 6Pins
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Base Number: 5500
  • Connection Size: 4.928mm
  • Operating Pressure Range: 0Pa to 500kPa
  • Operating Temperature Range: -40°C to +125°C
  • Port Style: Dual Port
  • Supply Current: 7mA
  • Supply Voltage Range: 4.75V to 5.25V
  • Termination Type: Through Hole
