Description

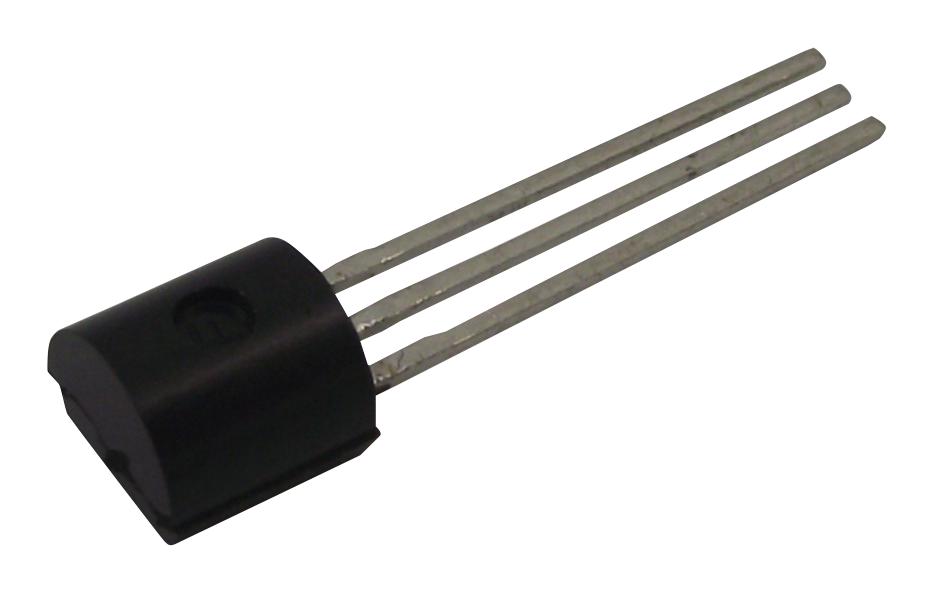

MULTICOMP PRO - MPSA14 - Bipolar (BJT) Single Transistor, NPN, 30 V, 500 mA, 625 mW, TO-92, Through Hole
- Transistor Polarity: NPN
 - Collector Emitter Voltage V(br)ceo: 30V
 - Transition Frequency ft: -
 - Power Dissipation Pd: 625mW
 - DC Collector Current: 500mA
 - DC Current Gain hFE: 20000hFE
 - Transistor Case Style: TO-92
 - No. of Pins: 3Pins
 - Operating Temperature Max: 150°C
 - Product Range: -
 - Automotive Qualification Standard: -
 - MSL: MSL 1 - Unlimited
 - SVHC: No SVHC (15-Jan-2019)
 - Av Current Ic: 300mA
 - Collector Emitter Saturation Voltage Vce(on): 1.5V
 - Continuous Collector Current Ic Max: 500mA
 - Current Ic Continuous a Max: 500mA
 - Current Ic hFE: 100mA
 - Device Marking: MPSA14
 - Full Power Rating Temperature: 25°C
 - Gain Bandwidth ft Min: 125MHz
 - Gain Bandwidth ft Typ: 125MHz
 - Hfe Min: 20000
 - No. of Transistors: 1
 - Operating Temperature Min: -55°C
 - Operating Temperature Range: -55°C to +150°C
 - Pin Configuration: e
 - Power Dissipation Ptot Max: 625mW
 - Termination Type: Through Hole
 - Transistor Type: Darlington
 - Voltage Vcbo: 30V
