Description

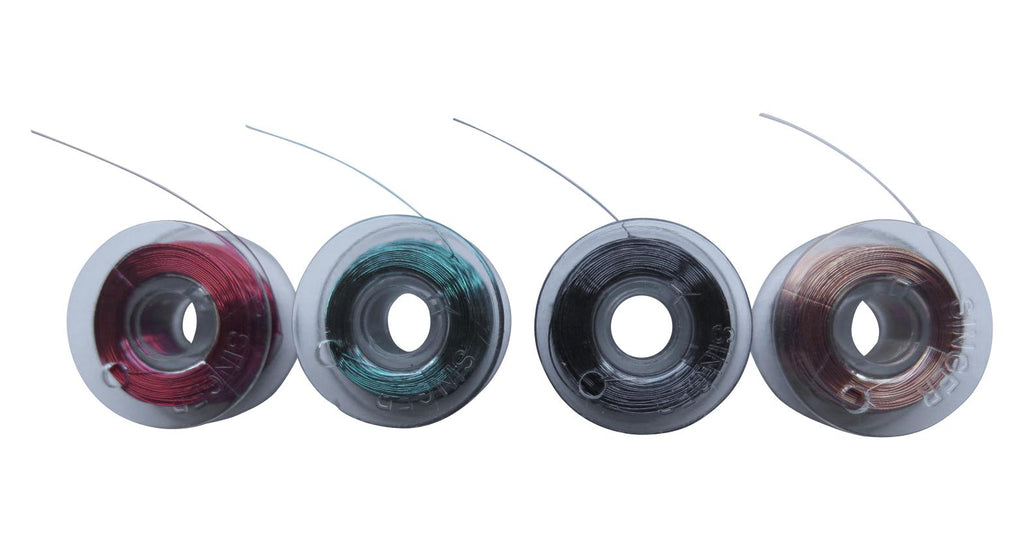

MULTICOMP PRO - MPRRP-A-105 - Wire, Solid, Wiring Pencil, Solderable Enamelled Copper, 0.15mm OD, Gold, Green, Pink, Violet, 38SWG
- Jacket Material: -
- Jacket Colour: Gold, Green, Pink, Violet
- Wire Gauge: 38SWG
- Conductor Area CSA: 0.018mm²
- Reel Length (Imperial): 124ft
- Reel Length (Metric): 38m
- No. of Max Strands x Strand Size: Solid
- Voltage Rating: 1.5kV
- Conductor Material: Copper
- External Diameter: 0.15mm
- Approval Specification: -
- Product Range: RRP Series
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: BS
- Conductor Diameter Max: 0.15mm
- Conductor Make-up: 1 / 0.15mm
- Current Rating: 82mA
- Insulation Voltage: 1500VAC
- Operating Temperature Max: 120°C
- Outer Diameter: 0.15mm
- Pack Quantity: 4
- Primary Insulation Thickness: 0.012mm
- Resistance per Metre: 0.967ohm
- SWG Number: 38
- Voltage Rating VAC: 1500V
