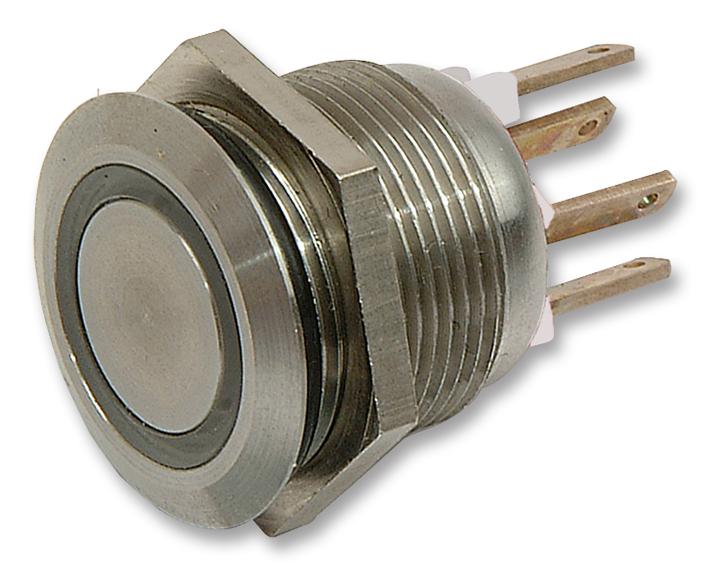

BULGIN LIMITED - MPI002/28/WH - Vandal Resistant Switch, MPI002, 19.2 mm, SPST-NO, Momentary, Flush, Natural
- Contact Configuration: SPST-NO
- Actuator / Cap Colour: Natural
- Product Range: MPI002 Series
- Switch Operation: Momentary
- Illumination Colour: White
- Switch Terminals: Quick Connect
- Contact Current Max: 50mA
- Contact Voltage AC Max: -
- Operating Force: 12N
- Contact Voltage DC Max: 24V
- SVHC: No SVHC (27-Jun-2018)
- Colour: White
- Contact Current DC Max: 50mA
- Contact Resistance: 100mohm
- Contact Voltage VDC: 24V
- External Depth: 30.3mm
- External Length / Height: 31mm
- IP Rating: IP66
- No. of Electrical Operations: 35000
- No. of Mechanical Operations: 750000
- Operating Temperature Max: 70°C
- Operating Temperature Min: -30°C
- Panel Cutout Diameter: 19.2mm
- Pushbutton Actuator Style: Flush
- Pushbutton Switch Type: Anti-Vandal
- Switch Mounting: Panel
